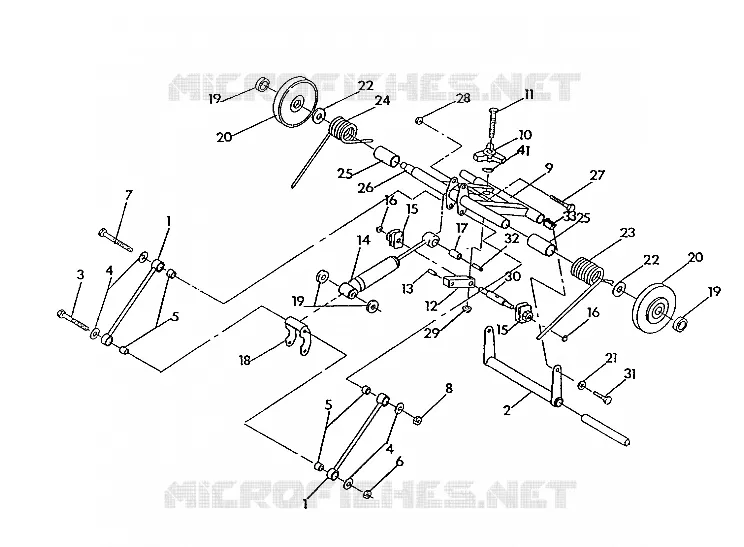

REAR TORQUE ARM 650 (4921312131026A)
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM 650 (4921312131025A)
by
DRIVE CLUTCH 650 (4921312131027A)
REAR TORQUE ARM 650 (4921312131026A)
1
ROD SUSPENSION
1540662067
Not Available
2
ARM REAR PIVOT
1540665067
Not Available
3
SCREW
7515496
$17,84 Unit Price incl. VAT
4
WASHER(10) Substituted by 7555806
7555720
7555806
$1,56 Unit Price incl. VAT
5
BUSHING PIVOT TUBE
5020561
$2,61 Unit Price incl. VAT
6
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
7
SCREW(10)
7512463
$9,44 Unit Price incl. VAT
8
NUT FLEX LOC (10)
7542402
$11,54 Unit Price incl. VAT
9
ARM REAR TORQUE
1540666067
Not Available
10
KNOB SPRING ADJ.
5630361
Not Available
11
BOLT ADJUSTER(10)
7515455
$41,99 Unit Price incl. VAT
12
BRKT SPRING ADJ BLK.
5222607067
Not Available
13
SPACER R.PIVOT ARM
5333026
$4,92 Unit Price incl. VAT
14
SHOCK ASM.
7041237
Not Available
15
ROLLER SPRING ADJ.
5431168
Not Available
16
CLIP PUSH ON
7080394
$4,19 Unit Price incl. VAT
17
BUSHING R.SHOCK
5333030
Not Available
18
ARM SHOCK PIVOT
1540664067
Not Available
19
SPACER R.SHOCK(10)
5211224
Not Available
19
SPACER-CARR.WHEEL
5332730
$22,04 Unit Price incl. VAT
20
WHEEL CARRIER ASM
1543022
$115,49 Unit Price incl. VAT
21
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
22
WASHER FLAT
7555726
$3,14 Unit Price incl. VAT
23
SPRING LH R.SUSP. Substituted by 7041248-067
7041248
Not Available
24
SPRING RH R.SUSP. Substituted by 7041249-067
7041249
Not Available
25
TUBE
5431171
Not Available
26
AXLE Substituted by 5020906
5020426
Not Available
27
SCR-HH-5/16-18X1.75 GR5 ZY3
7512329
$7,34 Unit Price incl. VAT
28
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
29
NUT
7542449
$7,34 Unit Price incl. VAT
30
ROD SPRING ADJ.
5130746
Not Available
31
BOLT(10) Substituted by 7512492
7515458
7512492
$2,09 Unit Price incl. VAT
32
BUSHING
5430537
$7,34 Unit Price incl. VAT
33
SHAFT R.TORQUE ARM Substituted by 5020727
5020559
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
