1
Engine displacement
400
2
Year
1996
3
Trim
XPRESS 400 - W969540
4
Parts Catalog

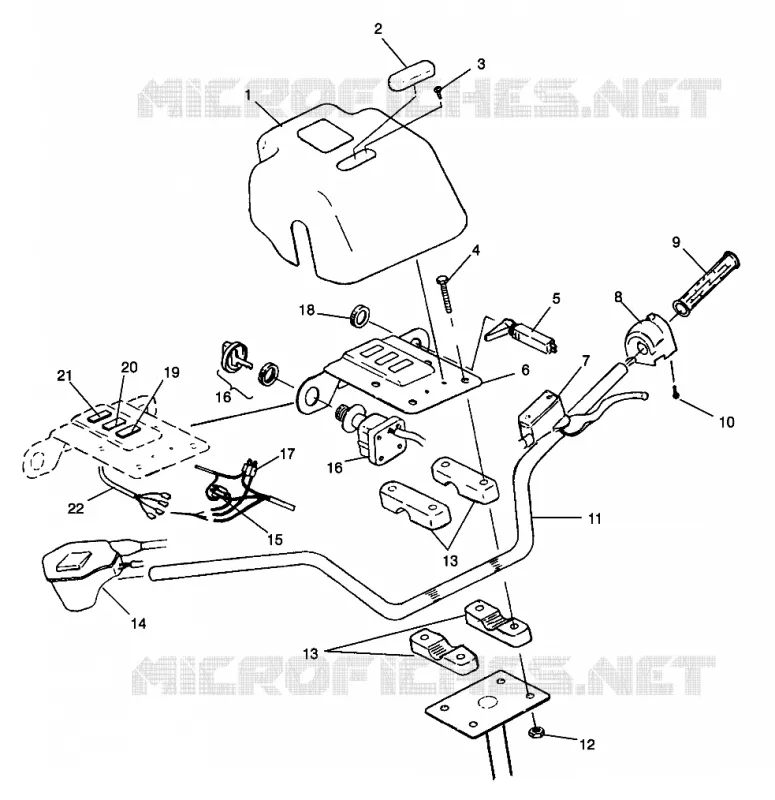

HANDLEBAR (300) XPRESS 300 W969530 (4935923592B009)
5
Parts Diagram
Parts Catalog
FRONT WHEEL XPRESS 300 W969540 AND XPRESS 400 W969540 (4935923592B008)
by
HANDLEBAR HEADLIGHT POD (400) XPRESS 400 W969540 (4935923592B011)
HANDLEBAR (300) XPRESS 300 W969530 (4935923592B009)
1
PANEL INST. BLK
5432246070
Not Available
2
COVER-LOGO BLK
5432247070
Not Available
3
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
4
SCREW
7517216
Not Available
5
CABLE CHOKE CONTROL
7080579
$178,49 Unit Price incl. VAT
5
KIT CHOKE CONTROL INCL. ANCHOR FLIPPER PIN
2200188
$52,49 Unit Price incl. VAT
6
BRKT INST.PANEL BLK
5241397067
$31,80 Unit Price incl. VAT
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
SWITCH HI/LOW/OFF LH H#BAR
4110193
$278,24 Unit Price incl. VAT
9
GRIP HANDLEBAR
5431030
5433834-070
$52,49 Unit Price incl. VAT
10
SCREW
2010055
Not Available
11
HANDLEBAR TUBE BLK
5224715067
Not Available
12
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
13
BLOCK H#BAR (300)
5630629
$18,57 Unit Price incl. VAT
14
THROTTLE CONTROL ASM
2010159
Not Available
15
HARNESS JUMPER HI-BEAM
2460514
Not Available
16
COVER KEY Substituted by 5433534
5431964
5465307
$26,24 Unit Price incl. VAT
16
SWITCH IGNITION (Incl. Key)
4110194
Not Available
17
HARNESS JUMPER LO-BEAM
2460513
Not Available
18
Nut Choke Slide
7080229
$36,74 Unit Price incl. VAT
19
PLUG INDIC.HOLE (400 & 650)
5430967
$12,59 Unit Price incl. VAT
20
INDIC#LOW OIL&HI-BEAM.#
4040052
$62,99 Unit Price incl. VAT
21
INDIC#NEUT./REV.#
4040054
$62,99 Unit Price incl. VAT
22
HARNESS CONTROL PANEL
2460553
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
