REAR CALIPER MOUNTING
5
Parts Diagram
Parts Catalog
REAR BRAKE MASTER CYLINDER
by
AIR BOX

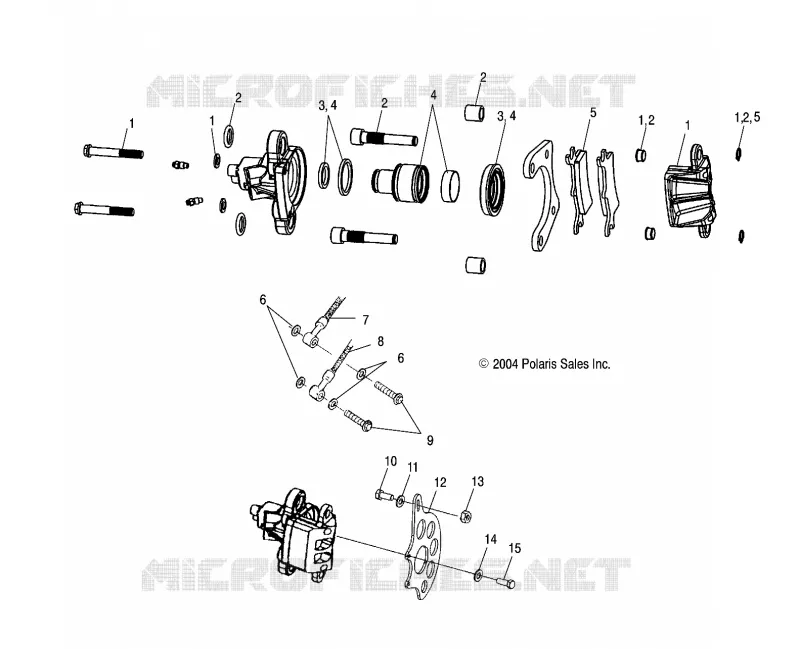

REAR CALIPER MOUNTING
-
1
1
1
1
1
2
2
2
2
2
3
3
4
4
4
5
5
6
6
7
8
9
10
11
12
13
14
15
-
Asm. Caliper Rear [Incl. 1-6]
1910806
$488,24 Unit Price incl. VAT
1
Kit Anvil Body
2201873
$249,89 Unit Price incl. VAT
2
KIT-SLIDE BOLT DH4P
2201870
$120,74 Unit Price incl. VAT
3
KIT-SEAL DH4P
2201872
$120,74 Unit Price incl. VAT
4
KIT-PISTON & SEAL DH4P
2201869
$225,74 Unit Price incl. VAT
5
Kit Brake Pad [If built after 7/12/02]
2202414
$56,16 Unit Price incl. VAT
6
SEAL
5410988
$9,44 Unit Price incl. VAT
7
Line Brake Rear
1910770
Not Available
8
Line Brake
1910769
Not Available
9
BOLT-BANJO 10MMX1.00-6G
1910499
$10,49 Unit Price incl. VAT
10
SCR-1/4-20X1 SOC CP-Y
7515102
$9,44 Unit Price incl. VAT
11
WASHER-.453X1.0X.078-Y
7555883
$7,34 Unit Price incl. VAT
12
Mount Caliper Black
5247210067
Not Available
13
NUT NYLOK
7547066
$3,14 Unit Price incl. VAT
14
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
15
BOLT
7515335
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
