1
Engine displacement
500
2
Year
2017
3
Trim
RANGER 500 ETX / HDPE
4
Parts Catalog

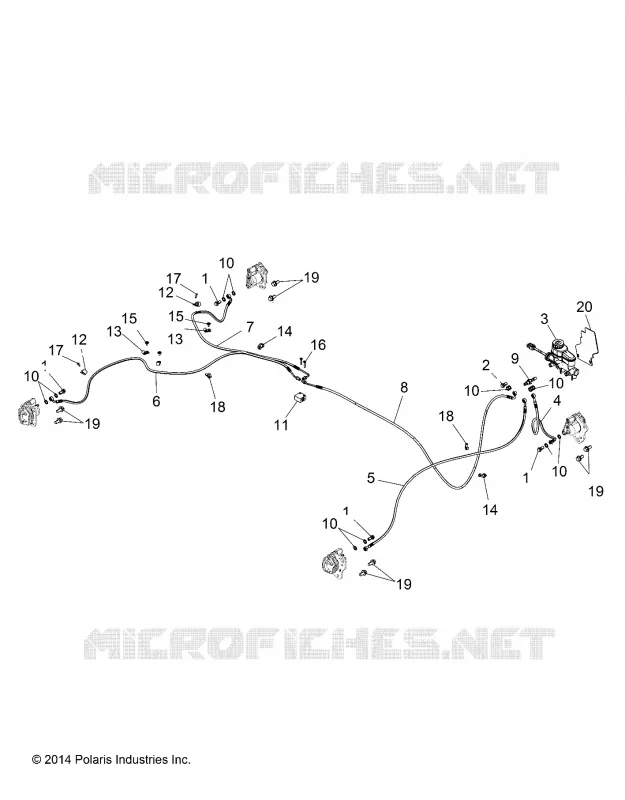

BRAKES, BRAKE LINES AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
SIDE NETS
by
DRIVE TRAIN, FRONT DRIVE SHAFT
BRAKES, BRAKE LINES AND MASTER CYLINDER
12
12
13
13
14
14
15
15
16
17
17
18
18
19
19
19
19
20
1
BOLT-BANJO 10MMX1.00-6G
1910499
$10,49 Unit Price incl. VAT
2
BOLT-BANJO 10MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
3
ASM-M/C-T HBII STD PUSH ROD
1912463
$482,99 Unit Price incl. VAT
4
LINE BRAKE FRONT LEFT 22.25 INCH
1912283
$89,24 Unit Price incl. VAT
5
LINE BRAKE FRONT RIGHT 40 INCH
1912284
$99,74 Unit Price incl. VAT
6
LINE-BRK RR 52# 20F 70B 90 JJ
1912104
$167,99 Unit Price incl. VAT
7
LINE-BRK RL 39# 90F 70B 270 J
1912105
$152,24 Unit Price incl. VAT
8
LINE BRAKE
1912285
$141,74 Unit Price incl. VAT
9
SWITCH-BRK M10X1.25 DBL SEALED [TO 10/01/2022]
4014262
4081264
$153,29 Unit Price incl. VAT
10
SEAL-STAT-0-3/8 70EP
5413212
$9,44 Unit Price incl. VAT
11
FITTING-TEE BRAKE
7052293
$110,24 Unit Price incl. VAT
12
CLAMP-CABLE 9/16 I.D.
7080499
$10,49 Unit Price incl. VAT
13
CLAMP-HOSE .312DIA VINYL COAT
7080683
$4,19 Unit Price incl. VAT
14
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
15
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
16
SCR-10-24X1 PN TRX TFS STL-Y
7518552
$7,34 Unit Price incl. VAT
17
RIVET-POP 5/32(.251-.375)-ST-B
7621323
$2,09 Unit Price incl. VAT
18
CLIP-SILENCER BOX-C 98 INDY
7670102
$4,19 Unit Price incl. VAT
19
BOLT-M10X1.25X20 HXFLG-OLV D
7518558
$7,34 Unit Price incl. VAT
20
SHIELD-MASTER CYL GALV
5258202
$16,79 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
