1
Engine displacement
570
2
Year
2017
3
Trim
SPORTSMAN 570 EPS EU
4
Parts Catalog

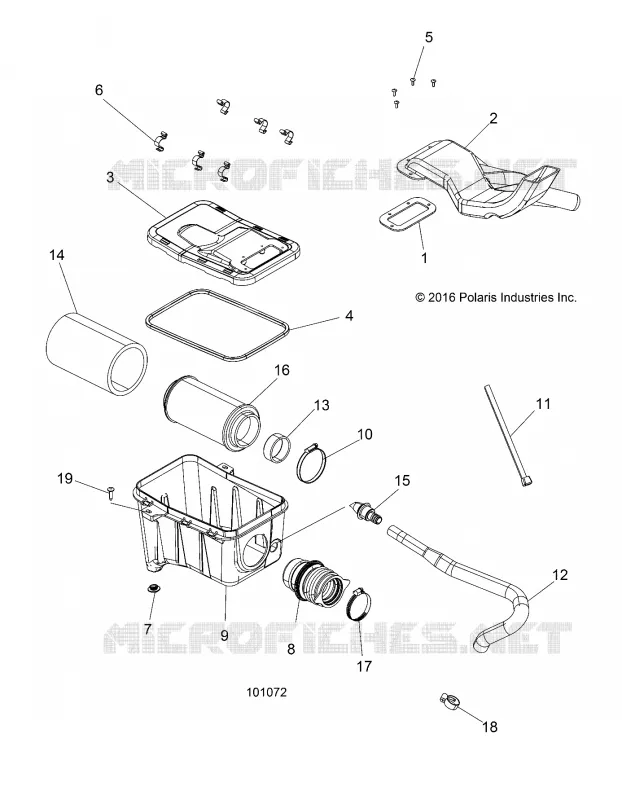

ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
ELECTRICAL, IGNITION COIL, WIRE AND SPARK PLUG
by
ENGINE, COOLING SYSTEM
ENGINE, AIR INTAKE SYSTEM
12
13
14
15
16
17
18
19
1
GASKET INTAKE
5411422
$10,49 Unit Price incl. VAT
2
DUCT AIR INLET
5450386
$73,49 Unit Price incl. VAT
3
COVER AIR BOX [TO 12/4/2023]
5450388
5459622
$83,99 Unit Price incl. VAT
4
SEAL AIRBOX COVER
5813949
$52,49 Unit Price incl. VAT
5
SCREW(10)
7517317
$6,29 Unit Price incl. VAT
6
CLIP-AIR BOX
5242044
$17,84 Unit Price incl. VAT
7
PLUG-COMPARTMENT
5412981
5418084
$6,29 Unit Price incl. VAT
8
BOOT ENGINE INTAKE
5415034
$167,99 Unit Price incl. VAT
9
BOX AIR INTAKE
5450387
$257,24 Unit Price incl. VAT
10
CLAMP-BAND NARROW 60-80MM
7080707
$5,76 Unit Price incl. VAT
11
CABLE-TIE 10-102MM WEATH.-RES.
7080761
$5,24 Unit Price incl. VAT
11
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
12
HOSE BREATHER FORMED
5415276
$68,24 Unit Price incl. VAT
13
SLEEVE CARBURETOR INNER
5433847
$27,29 Unit Price incl. VAT
14
Filter Pre-Cleaner Sleeve
5811633
$19,20 Unit Price incl. VAT
15
VALVE-BREATHER W/.53# BARB ID
7052577
$52,49 Unit Price incl. VAT
16
FILTER AIR INTAKE
7082101
7083107
$51,23 Unit Price incl. VAT
17
CLAMP HOSE 2.75# SS
7080446
$20,99 Unit Price incl. VAT
18
CLAMP-HOSE 13/16#-1 1/2#
7081174
$13,64 Unit Price incl. VAT
19
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
