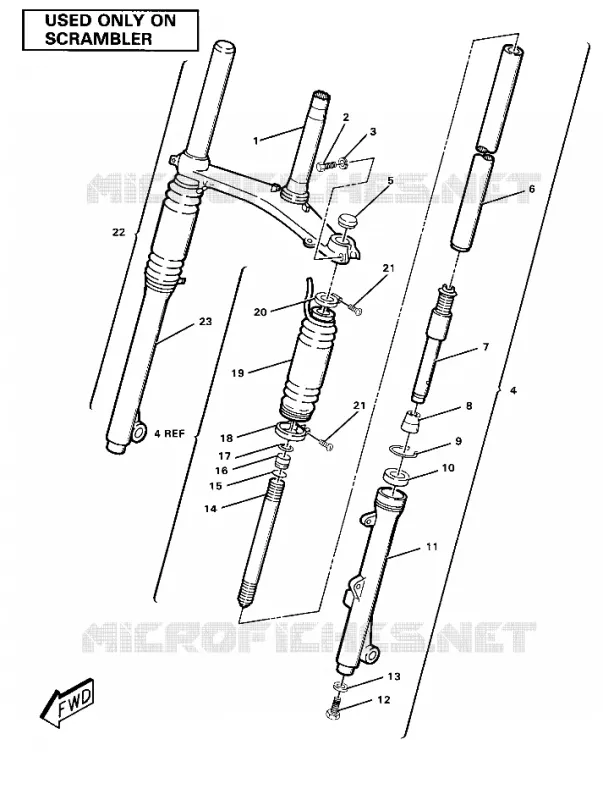

FRONT FORK (4910981098020A) FOR SCRAMBLER

CABLES (4910981098018A)

STEERING ASSEMBLY-SCRAMBLER (4910981098022A)

BRACKET UNDER COMP. [No Longer Available]

1844024

Not Available

BULB H/L

4030028

Not Available

HEADLIGHT ASM. (Incl. 20 22)

4032038

Not Available

BOLT [No Longer Available]

1844025

Not Available

SCREW(10)

7512017

$9,44 Unit Price incl. VAT

WASHER SPRING [No Longer Available]

1844026

Not Available

COVER (P.RED) H/L.

5431202136

Not Available

FORK ASM FRONT LH [No Longer Available]

1843001

Not Available

SCREW ADJ.(10)

4032003

$9,44 Unit Price incl. VAT

PLUG INNER TUBE [No Longer Available]

1844037

Not Available

TUBE INNER 1 [No Longer Available]

1844027

Not Available

SCREW ADJUST (ATV)(10)

4032042

Not Available

CYLINDER [No Longer Available]

1844028

Not Available

DOOR ACCESS Substituted by 5431201-132

5431201

Not Available

SPINDLE TAPER [No Longer Available]

1844038

Not Available

FASTENER 1/4 TURN(10)

7670064

$11,01 Unit Price incl. VAT

RING SPLIT RETAINER(10)

7670065

$3,66 Unit Price incl. VAT

CLIP CIRCLE [No Longer Available]

1844032

Not Available

RECEPTACLE CLIP-ON(10)

7670066

$6,81 Unit Price incl. VAT

SEAL OIL [No Longer Available]

1844031

Not Available

KIT CHOKE CONTROL INCL. ANCHOR FLIPPER PIN

2200188

$52,49 Unit Price incl. VAT

TUBE OUTER LH [No Longer Available]

1844029

Not Available

CABLE CHOKE

7080371

$178,49 Unit Price incl. VAT

SWITCH IGN.(MODIFIED) Substituted by 4110140

4110086

$257,24 Unit Price incl. VAT

BOLT [No Longer Available]

1844040

Not Available

WASHER PLATE [No Longer Available]

1844039

Not Available

BRKT IGN. PANEL

5220965067

Not Available

STRIP SOCKET

4032037

$43,56 Unit Price incl. VAT

SPRING FRONT FORK [No Longer Available]

1844033

Not Available

BULB

4030042

4080872

$15,74 Unit Price incl. VAT

O RING [No Longer Available]

1844035

Not Available

BOLT CAP [No Longer Available]

1844034

Not Available

PANEL IGNITION

5430995

Not Available

LENS ASM PILOT LIGHT

2652056

Not Available

CLIP CIRCLE [No Longer Available]

1844036

Not Available

SPRING-ADJ

4032002

Not Available

BAND [No Longer Available]

1844042

Not Available

SPRING ADJ. (Incl. Bulb Lens & Gasket)

4032041

Not Available

BOOT [No Longer Available]

1844041

Not Available

BAND 2 [No Longer Available]

1844043

Not Available

Screw

7511862

Not Available

DECAL WARN#DEM.4#SW. Substituted by 7074935

7072737

Not Available

SCREW PAN HEAD [No Longer Available]

1844044

Not Available

FORK ASM FRONT RH [No Longer Available]

1843002

Not Available

LABEL #U.S.A.#

7073024

Not Available

DECAL #350 LIQ.#

7073102

Not Available

TUBE OUTER RH [No Longer Available]

1844030

Not Available

NUT SPEED(10)

7670060

$7,34 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
