DRIVE TRAIN, REAR GEARCASE INTERNALS (BUILT 1/31/08 AND BEFORE) for POLARIS SPORTSMAN 800 EFI SCANDINAVIAN - A08MH76SS/SF from 2008

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, REAR GEARCASE MOUNTING

DRIVE TRAIN, REAR GEARCASE INTERNALS (BUILT 1/31/08 AND BEFORE)

-

Asm. Gearcase Rear (If built after 10/06/04)

1332366

Not Available

1

SCREW TAPPING HEX WASHER HD 5/16-18 X 1.25

3234114

$13,64 Unit Price incl. VAT

2

TUBE VENT 90 -1/4 INCH HOSE

3234230

$19,94 Unit Price incl. VAT

3

Cover Rear LH (1332366)

3234235

Not Available

4

Pin Dowel

3233859

Not Available

5

BEARING BALL 6010 C3 50 X 80 X 10

3233268

$88,19 Unit Price incl. VAT

6

Gearcase Rear RH

3234115

$797,99 Unit Price incl. VAT

7

Plug

3234087

$31,49 Unit Price incl. VAT

8

SEAL TRIPLE LIP 40 X 70 X 7

3233878

$57,74 Unit Price incl. VAT

9

SEAL TRIPLE LIP VITON 25 X 80 X 10

3234113

$68,24 Unit Price incl. VAT

10

RING RETAINING BEVELED INTERNAL 2.835

3234158

$41,99 Unit Price incl. VAT

11

BEARING BALL 6306 STD 30X72X19

3233714

$54,59 Unit Price incl. VAT

12

Shaft Pinion 10T

3233881

$325,49 Unit Price incl. VAT

13

BEARING PLAIN

3233577

$36,74 Unit Price incl. VAT

14

Gear 31T

3233879

Not Available

15

SHIM 3.1 X 2.5

3233581

$73,49 Unit Price incl. VAT

16

THRUST BUTTON

3233582

$13,64 Unit Price incl. VAT

17

SHIM .450 X .265

3233583

$52,49 Unit Price incl. VAT

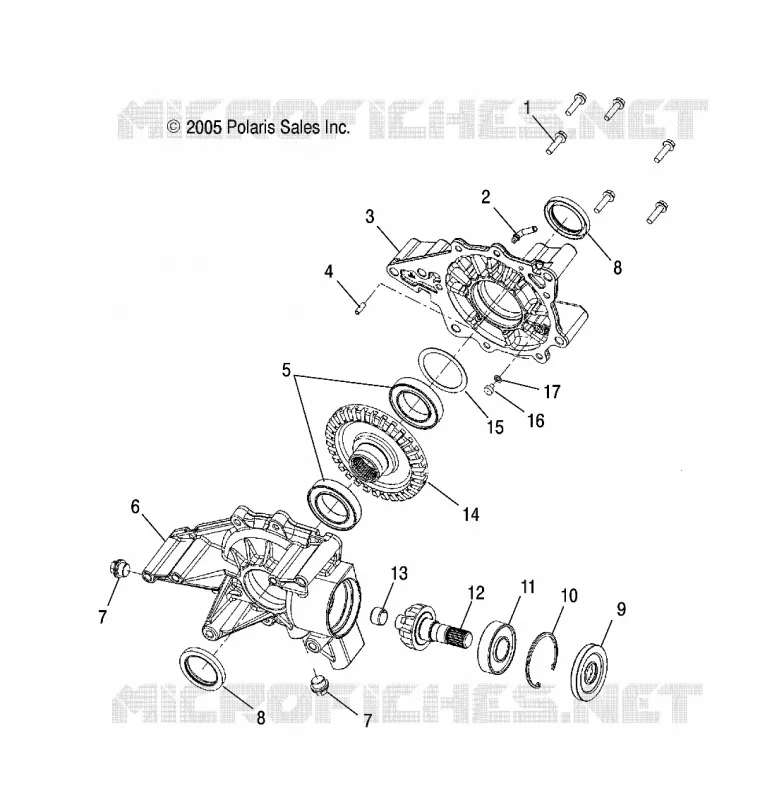

Find the detailed DRIVE TRAIN, REAR GEARCASE INTERNALS (BUILT 1/31/08 AND BEFORE) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
