1
Engine displacement
330
2
Year
2006
3
Trim
MAGNUM 330 4X4 - A06CD32AA
4
Parts Catalog

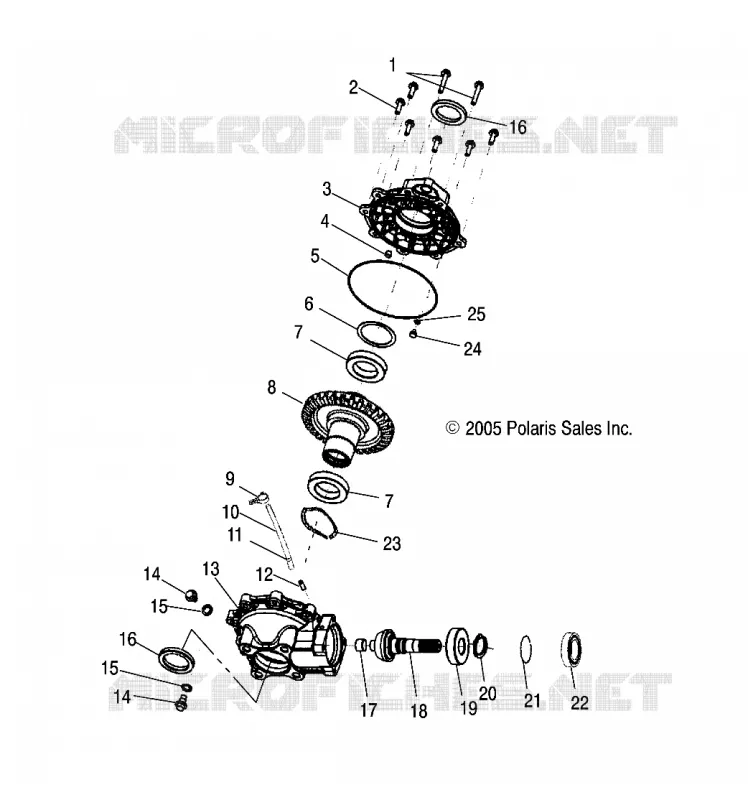

REAR HOUSING
5
Parts Diagram
Parts Catalog
GEARCASE OUTPUT
by
REAR SWING ARM/GEARCASE MOUNTING
REAR HOUSING
-
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
14
15
15
16
16
17
18
19
20
21
22
23
24
25
-
Asm. Gearcase Rear [Incl. 1-8 12-25]
1341423
Not Available
1
Screw
3233585
Not Available
2
SCREW
3233252
$9,44 Unit Price incl. VAT
3
Cover Gearcase Output
3233753
Not Available
4
PIPE KNOCK
3233529
$16,79 Unit Price incl. VAT
5
O-Ring
3233587
$57,74 Unit Price incl. VAT
6
SHIM 3.1 X 2.5
3233581
$73,49 Unit Price incl. VAT
7
BEARING BALL 6010 C3 50 X 80 X 10
3233268
$88,19 Unit Price incl. VAT
8
Gear 31T
3233965
Not Available
9
CLIP-SILENCER BOX-C 98 INDY
7670102
$4,19 Unit Price incl. VAT
10
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
11
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
12
Tube Vent Hose
3233524
$15,74 Unit Price incl. VAT
13
Gearcase Rear Housing
3233970
$428,39 Unit Price incl. VAT
14
PLUG OIL FILL
3233711
Not Available
15
WASHER
3233324
$13,64 Unit Price incl. VAT
16
SEAL TRIPLE LIP 40 X 70 X 7
3233878
$57,74 Unit Price incl. VAT
17
BEARING PLAIN
3233577
$36,74 Unit Price incl. VAT
18
Shaft Pinion 10T
3233969
Not Available
19
BEARING BALL 6306 STD 30X72X19
3233714
$54,59 Unit Price incl. VAT
20
RING RETAINING IRR 7200-118
3233699
$13,64 Unit Price incl. VAT
21
Ring Retaining
3233968
Not Available
22
Seal Triple Lip
3234003
$57,74 Unit Price incl. VAT
23
Spring Wave
3233963
Not Available
24
THRUST BUTTON
3233582
$13,64 Unit Price incl. VAT
25
SHIM .450 X .265
3233583
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
