1
Spring Compression Red (AA)(AD)
7042251293
Not Available
1
Spring Compression Gold (AC)
7042251462
$56,90 Unit Price incl. VAT
1
Spring Compression Cosmic Sun (AB)
7042251446
Not Available
2
Spacer
5510468
$51,23 Unit Price incl. VAT
3
Spring Compression Cosmic Sun (AB)
7042250446
Not Available
3
Spring Compression Red (AA)(AD)
7042250293
Not Available
3
Spring Compression Gold (AC)
7042250462
Not Available
4
O-RING 0.600IDX.210
5412290
$3,66 Unit Price incl. VAT
5
Reducer
5334195
$16,79 Unit Price incl. VAT
6
NUT NYLOK
7547066
$3,14 Unit Price incl. VAT
7
WASHER FLAT
7555984
$4,19 Unit Price incl. VAT
8
Bolt
7518207
$41,99 Unit Price incl. VAT
9
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
Slide Chain
5435410
$83,99 Unit Price incl. VAT
12
Spacer (If built after 10/08/02)
5334334
$36,74 Unit Price incl. VAT
13
SCR-10-24X3/4 PH/TX/TRI-SEMS Y
7518196
$2,09 Unit Price incl. VAT
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
16
Bushing Thrust
5434754
Not Available
17
Spacer
5133796
Not Available
18
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
19
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
20
Roller Chain
1590360
Not Available
21
BOLT(10)
7515384
Not Available
21
BOLT(10)
7515301
Not Available
22
Seal
3610104
Not Available
23
Bearing Needle
3514653
$16,79 Unit Price incl. VAT
24
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
25
Bolt
7510006
$52,49 Unit Price incl. VAT
26
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
27
Guide Chain
5435411
$62,99 Unit Price incl. VAT
28
Asm. Guard Sprocket/Brake
1014628
Not Available
28
T-Nut
7547277
Not Available
29
Screw Flanged
7518181
$10,49 Unit Price incl. VAT
30
SCREW
7518179
$7,34 Unit Price incl. VAT
31
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
32
Washer .105
7555832
$4,19 Unit Price incl. VAT
33
Asm. Swing Arm Silver [Incl. 17 22 23]
1542023385
$487,19 Unit Price incl. VAT
34
SCR-3/8-24X2 3/4HX HD CP GR5-Y
7515417
$9,44 Unit Price incl. VAT

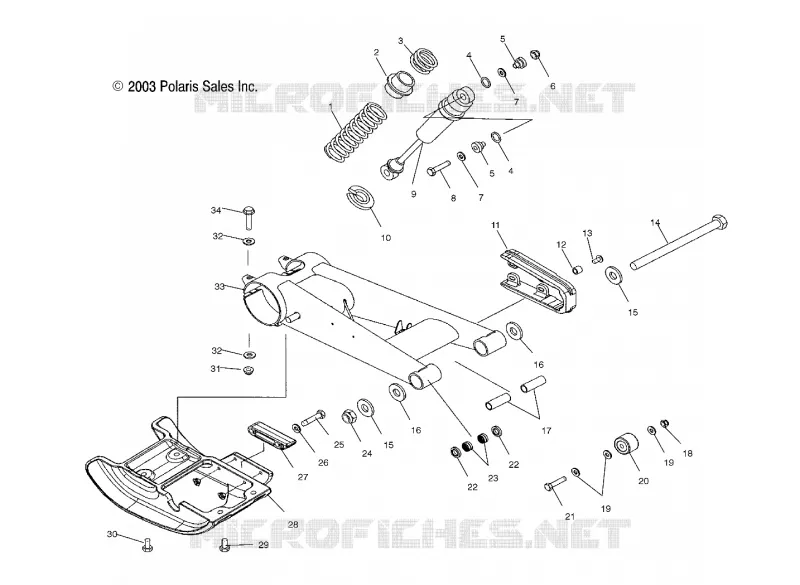

Find the detailed SWING ARM AND REAR SHOCK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
