1
Engine displacement
760
2
Year
2011
3
Trim
RZR 4/EPS RGE - R11XH76AW/AZ/XY76AA
4
Parts Catalog

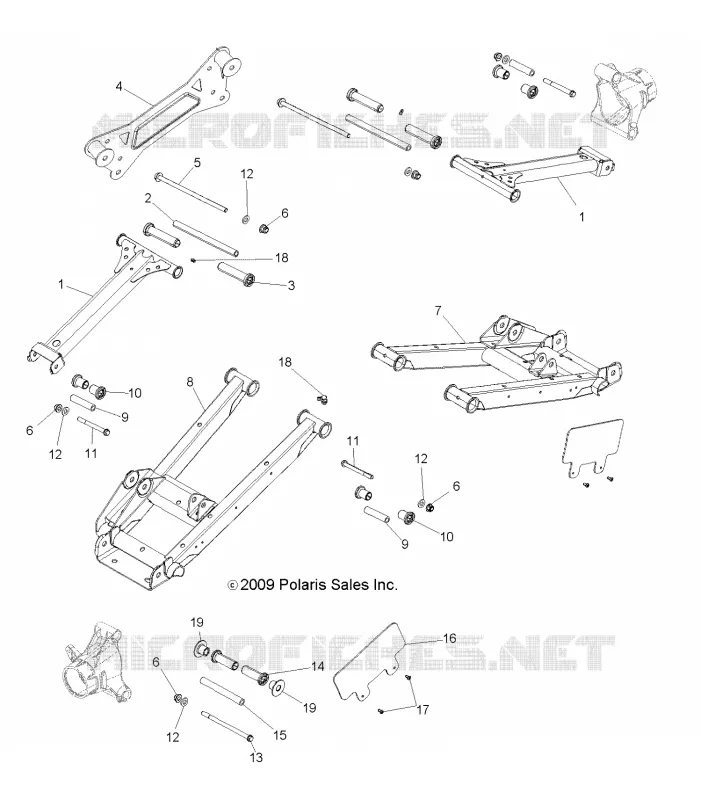

REAR SUSPENSION CONTROL ARMS
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION SHOCK MOUNTING
by
REAR SUSPENSION SHOCK
REAR SUSPENSION CONTROL ARMS
17
18
18
19
19
1
Arm Control Upper LT Rear Matte Black [Built 2/01/11 and Before][XH76AW][XH76AZ]
1017579458
Not Available
1
Arm Control Upper LT Rear Bright White [Built 2/02/11 and After][XY76AA]
1018188133
Not Available
1
Arm Control Upper LT Rear Bright White
1017579133
Not Available
1
Arm Control Upper LT Rear Matte Black [Built 2/02/11 and After][XH76AW][XH76AZ]
1018188458
Not Available
2
SHAFT-PIVOT 210.27MM ZINC YEL
5137594
$16,79 Unit Price incl. VAT
3
BUSHING-A-ARM LONG 102.36MM
5436973
$9,44 Unit Price incl. VAT
4
Brace Suspension Rear Matte# Black
1016583458
Not Available
5
SCR-HXFL-M10X1.25X235 10.9 ZOD
7519086
$52,49 Unit Price incl. VAT
6
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
7
Arm Control Lower LT Rear Bright White LH [Built 2/02/11 and After][XY76AA]
1018217133
Not Available
7
Arm Control Lower LT Rear Matte Black LH [Built 2/01/11 and Before][XH76AW][XH76AZ]
1018014458
1018217-458
$335,99 Unit Price incl. VAT
7
Arm Control Lower LT Rear Matte Black LH [Built 2/02/11 and After][XH76AW][XH76AZ]
1018217458
$335,99 Unit Price incl. VAT
7
Arm Control Lower LT Rear Bright White LH [Built 2/01/11 and Before][XY76AA]
1018014133
Not Available
8
Arm Control Lower LT Rear Bright White RH [Built 2/02/11 and After][XY76AA]
1018218133
$808,49 Unit Price incl. VAT
8
Arm Control Lower LT Rear Matte Black RH [Built 2/01/11 and Before][XH76AW][XH76AZ]
1018015458
Not Available
8
Arm Control Lower LT Rear Bright White RH [Built 2/01/11 and Before][XY76AA]
1018015133
$808,49 Unit Price incl. VAT
8
Arm Control Lower LT Rear Matte Black RH [Built 2/02/11 and After][XH76AW][XH76AZ]
1018218458
Not Available
9
Tube Pivot
5136100
$27,29 Unit Price incl. VAT
10
Bushing Control Arm
5436832
5439874
$4,19 Unit Price incl. VAT
11
SCR-HXFL-M10X1.25X95 10.9 ZOD
7519043
$17,84 Unit Price incl. VAT
12
WASHER
7556153
$3,66 Unit Price incl. VAT
13
SCR-HXFL-M10X1.25X165 10.9 ZOD
7519042
$17,84 Unit Price incl. VAT
14
Bushing Control Arm
5437229
$11,54 Unit Price incl. VAT
15
Tube Pivot
5136101
$52,49 Unit Price incl. VAT
16
SHIELD CV REAR BLACK
5438639070
$36,74 Unit Price incl. VAT
17
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
18
FITTING ZERK 90 DEGREE
7080510
$10,49 Unit Price incl. VAT
19
BUSHING PIVOT WEAR
5136102
$19,94 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
