STRUT ASSEMBLY (4918541854019A) FOR TRAIL BOSS 350L 4X4 - W908139 FROM 1990

Control Assembly (4918541854017A)

CLUTCH COVER ASSEMBLY (4918541854028A)

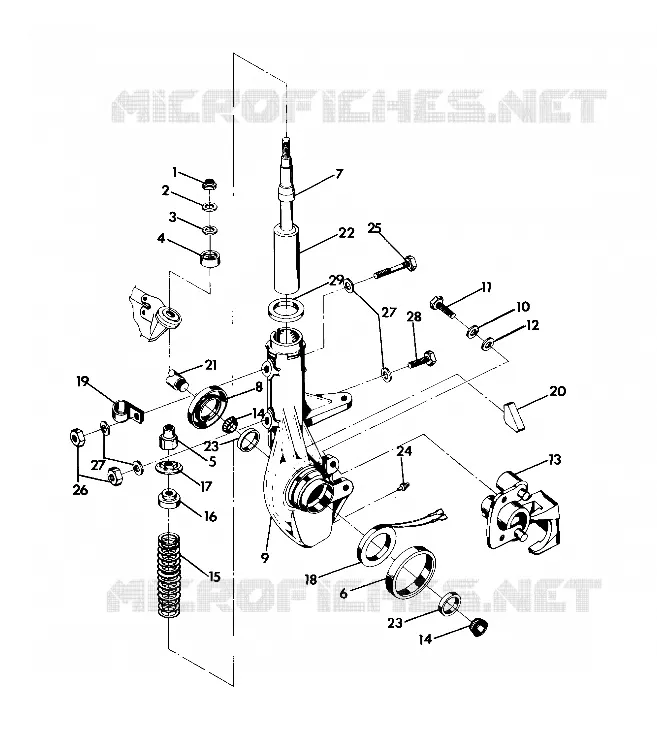

STRUT ASSEMBLY (4918541854019A)

1

NUT FLEX LOC(10)

7542507

Not Available

2

WSHR-.500X1.50-12GA-Y

7555749

$2,09 Unit Price incl. VAT

3

SPACER-RUBBER

5810291

$7,34 Unit Price incl. VAT

4

PIVOT BALL TOP Substituted by 5432872

5430806

$19,94 Unit Price incl. VAT

5

SPACER THREADED (Before 11/2/98)

5130668

$52,49 Unit Price incl. VAT

6

SLEEVE STRUT HUB SEAL

5222193

$120,74 Unit Price incl. VAT

7

BUMPER RUBBER

5410429

Not Available

8

SEAL HUB STRUT

3610028

$57,74 Unit Price incl. VAT

9

HUB STRUT ASM LH (Incl. 6 18 20 23 24)

1843033

Not Available

9

HUB STRUT ASM RH (Incl. 6 18 20 23 24)

1843034

Not Available

10

WASHER-5/16 SPRING LK-MED-Y

7552901

$2,09 Unit Price incl. VAT

11

SCREW CAP(10) [CALIPER MOUNTING]

7512365

$2,09 Unit Price incl. VAT

12

WASHER-.344X.688X.063 FL-Y

7558402

$1,56 Unit Price incl. VAT

13

CALIPER FR.BRAKE LH Substituted by 1910078

1910059

$488,24 Unit Price incl. VAT

13

CALIPER RH FRONT Substituted by 1910079

1910060

$488,24 Unit Price incl. VAT

14

BRG TAPER.ROLL.CONE

3554506

$54,59 Unit Price incl. VAT

15

SPRING COIL YELLOW Substituted by 7041161-067

7041161053

Not Available

16

RETAINER SPRING TOP (Before 11/2/98)

5220602

Not Available

17

PIVOT BALL BOTTOM Substituted by 5432871

5430807

$19,94 Unit Price incl. VAT

18

COIL MAGNETIC

4170003

$120,74 Unit Price incl. VAT

19

CLAMP(10) Substituted by 7080573

7080347

$13,64 Unit Price incl. VAT

20

RETAINER WIRE STRUT CAST

5810439

Not Available

21

SHAFT DRIVE ASM.

1380040

Not Available

22

SLEEVE SEAL

5222299

$57,74 Unit Price incl. VAT

23

BRG TAPER ROLL CUP

3554507

$54,59 Unit Price incl. VAT

24

FITTING LUB W/BALL

7080306

$5,76 Unit Price incl. VAT

25

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$9,44 Unit Price incl. VAT

26

NUT FLEX-LOC(10)

7542303

$11,54 Unit Price incl. VAT

28

WASHER-2.06X2.62X.105-Y [BJ/BK/BX/B9]

5211115

$7,34 Unit Price incl. VAT

29

STRUT ASM FRONT 25MM.

7041451

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
