1
Engine displacement
0
2
Year
1994
3
Trim
EURO XLT SKS - E940567
4
Parts Catalog

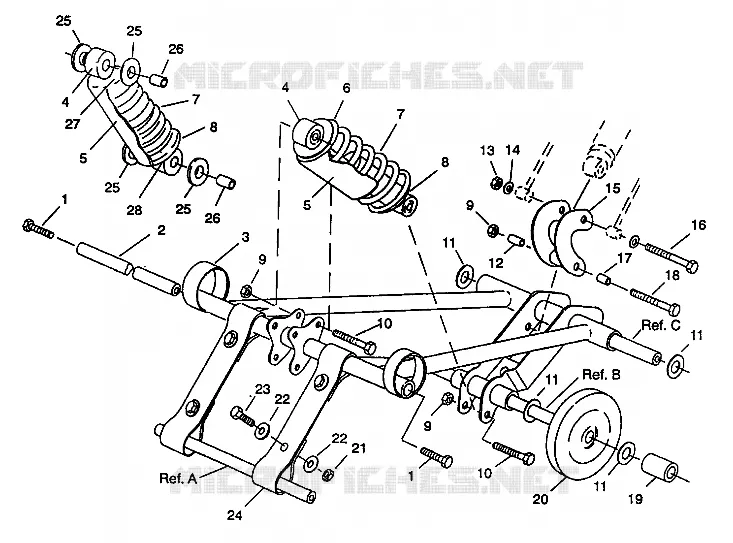

FRONT TORQUE ARM XLT E940767, XLT SP E940667 XLT SKS E940567 (49274227420021)
5
Parts Diagram
Parts Catalog
SUSPENSION ASSEMBLY XLT SP E940667 (49274227420020)
by
REAR TORQUE ARM XLT E940767, XLT SP E930667 XLT SKS E940567 (49274227420022)
FRONT TORQUE ARM XLT E940767, XLT SP E940667 XLT SKS E940567 (49274227420021)
1
BOLT NYLOC BLACK(10) Substituted by 7515432 (650 Only)
7515493
Not Available
2
SHAFT MOUNTING
5010149
Not Available
3
ARM FR.TORQUE BLK.
1540794067
Not Available
4
SHOCK CTR.SUSP.
7041281
Not Available
4
SHOCK GAS MIDDLE
7041294
Not Available
5
SHIELD SPRING
5430671
$47,24 Unit Price incl. VAT
6
RETAINER SPRING COIL
5220225
$19,94 Unit Price incl. VAT
7
SPRING BLACK COMP.
7041253067
Not Available
7
SPRING-SHOCK SUSP
7041140
Not Available
8
RETAINER-SPRING
5210953
$11,54 Unit Price incl. VAT
9
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
10
SCREW
7515415
$2,09 Unit Price incl. VAT
11
BUSHING-.781 X1.250X.060-Y
7556301
$6,29 Unit Price incl. VAT
12
BUSHING PIVOT TUBE
5020561
$2,61 Unit Price incl. VAT
13
NUT FLEX LOC (10)
7542402
$11,54 Unit Price incl. VAT
14
WASHER(10) Substituted by 7555806
7555720
7555806
$1,56 Unit Price incl. VAT
15
SHOCK ARM WELD BLK.
1540791067
Not Available
16
BOLT(10)
7515525
Not Available
17
SPACER
5333028
$2,61 Unit Price incl. VAT
18
BOLT
7515438
$9,44 Unit Price incl. VAT
19
SPACER OUTER
5332784
Not Available
20
WHEEL IDLER
1543018
$115,49 Unit Price incl. VAT
21
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
22
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
23
SCR-5/16-18X1-HX/FLG-GR5-Y
7515307
$7,34 Unit Price incl. VAT
24
STRAP LIMITER
5410397
Not Available
25
BUSHING SHOCK .260 Substituted by 1500184
5431541
Not Available
26
BUSHING (1.24)
5020640
Not Available
27
RETAINER SPRING SLOTTED
5020618
$36,74 Unit Price incl. VAT
28
RETAINER SPRING BODY
5020617
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
