1
Engine displacement
900
2
Year
2011
3
Trim
RANGER 4X4 900 D - R11TH90DG
4
Parts Catalog
BED BOX MOUNTING
5
Parts Diagram
Parts Catalog
ENGINE, MOUNTING FLANGE AND OIL SUMP
by
DECALS

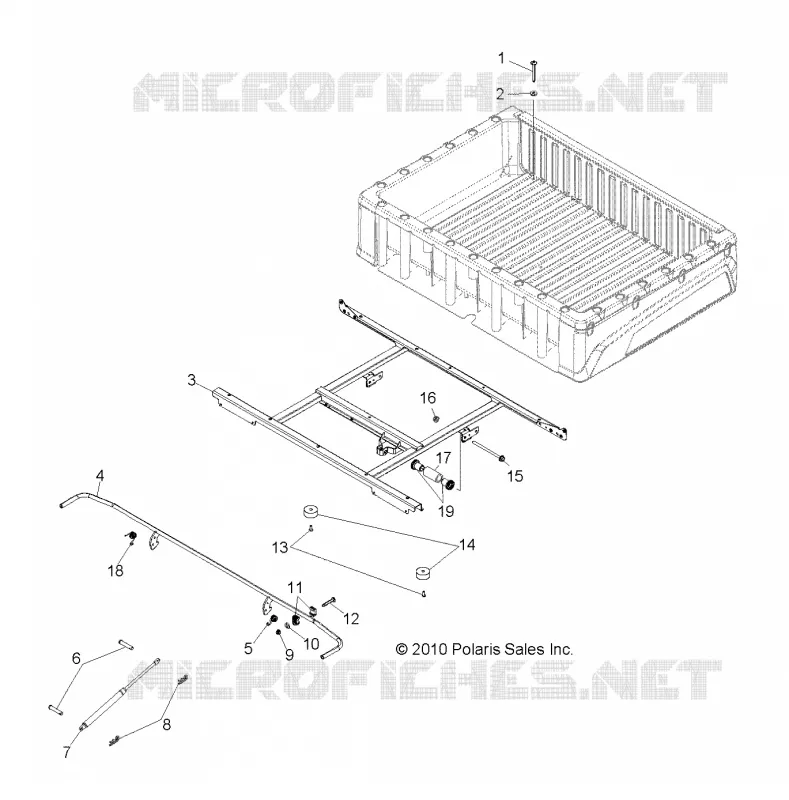

BED BOX MOUNTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
SCR-1/4-20X1.50 TR/TX-M
7518375
$2,09 Unit Price incl. VAT
2
WASHER-.281X1.00X.051
7556329
$2,09 Unit Price incl. VAT
3
Box Support Short Black
1017521329
$278,24 Unit Price incl. VAT
4
Latch Box Black
1017305067
Not Available
5
SPRING LATCH
7043576
$9,44 Unit Price incl. VAT
6
PIN-CLEVIS 1/2 X 1 3/4
7661878
$4,19 Unit Price incl. VAT
7
SHOCK DUMP BOX [BUILT 10/14/13 AND BEFORE]
7043187
$125,99 Unit Price incl. VAT
8
CLIP-HITCHPIN .148X3 1/16
7661067
$4,19 Unit Price incl. VAT
9
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
10
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
11
BUSHING-BOX LATCH
5434226
$7,34 Unit Price incl. VAT
12
Bolt Hex
7515319
$9,44 Unit Price incl. VAT
13
SCR-1/4-20X.75 TR/TX-M
7518280
$2,09 Unit Price incl. VAT
14
BUMPER BOX 60 DURO W/WASHER
5413833
$7,34 Unit Price incl. VAT
15
Bolt Flange
7518610
$41,99 Unit Price incl. VAT
16
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
17
SHAFT PIVOT 73.96MM
5137591
$10,49 Unit Price incl. VAT
18
SPRING LATCH
7043607
$20,99 Unit Price incl. VAT
19
Bushing A-Arm Short
5434548
5439270
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
