1
Engine displacement
0
2
Year
1992
3
Trim
FIN RXL SKS - F920568
4
Parts Catalog
PISTON CRANKSHAFT RXL/RXL SKS (4921322132039A)
5
Parts Diagram
Parts Catalog
CYLINDER MANIFOLD RXL/RXL SKS (4921322132038A)
by
WATER PUMP ASSEMBLY RXL/RXL SKS (4921322132040A)

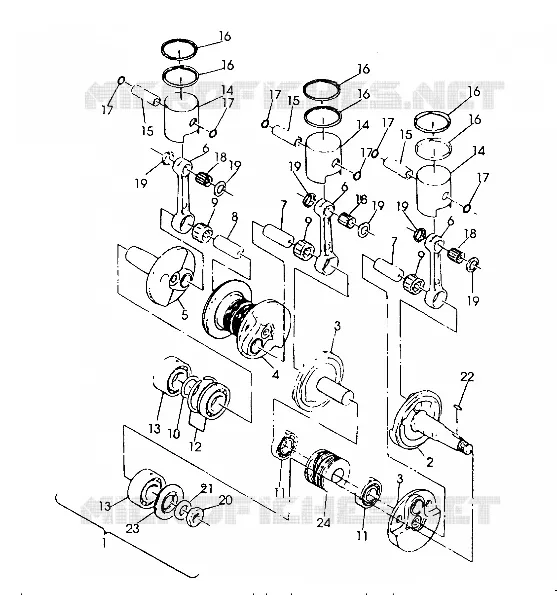

PISTON CRANKSHAFT RXL/RXL SKS (4921322132039A)
1
CRANKSHAFT ASM. (Incl. 2-13 24)
3084377
Not Available
2
CRANKSHAFT 1 MAG. END
3083342
Not Available
3
CRANKSHAFT MAG SIDE (Incl. 7)
3083478
Not Available
4
CRANKSHAFT PTO SIDE (Incl. 7)
3083479
Not Available
5
CRANKSHAFT PTO END
3083346
Not Available
6
ROD-CONNECTING
3083252
$236,24 Unit Price incl. VAT
7
PIN-CRANK 1
3083253
Not Available
8
PIN-CRANK 2
3083254
Not Available
9
BEARING-LARGE END Substituted by 3085628
3083255
$54,59 Unit Price incl. VAT
10
SPACER
3083399
$1,46 Unit Price incl. VAT
11
BEARING BALL Substituted by 3084586
3083480
3515063
$60,89 Unit Price incl. VAT
12
BALL BEARING C-4
3083714
Not Available
13
BEARING BALL
3084378
Not Available
14
PISTON (.010 O/S) (.010 Over)
3084246
Not Available
14
PISTON ASM STD. (Std.)
3084245
$207,36 Unit Price incl. VAT
14
PISTON (.020 O/S) (.020 Over)
3084247
Not Available
15
PIN PISTON
3083858
$40,94 Unit Price incl. VAT
16
RING .010 O/S (.010 Over)
3083873
$60,78 Unit Price incl. VAT
16
RING PISTON (Standard)
3083859
Not Available
16
RING .020 O/S (.020 Over)
3083874
Not Available
17
CLIP PISTON PIN (10)
3083839
$7,34 Unit Price incl. VAT
18
BEARING END SMALL
3083216
3515064
$25,71 Unit Price incl. VAT
19
SPACER Substituted by 3083860
3083401
Not Available
20
NUT
3083047
Not Available
21
WASHER
3083048
Not Available
22
KEY
3081447
Not Available
23
SEAL OIL(10)
3083045
$62,99 Unit Price incl. VAT
24
GEAR OIL PUMP
3083781
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
