1
Engine displacement
550
2
Year
2011
3
Trim
SPORTSMAN X2 550 INTL - A11TN55FA
4
Parts Catalog
TAILGATE
5

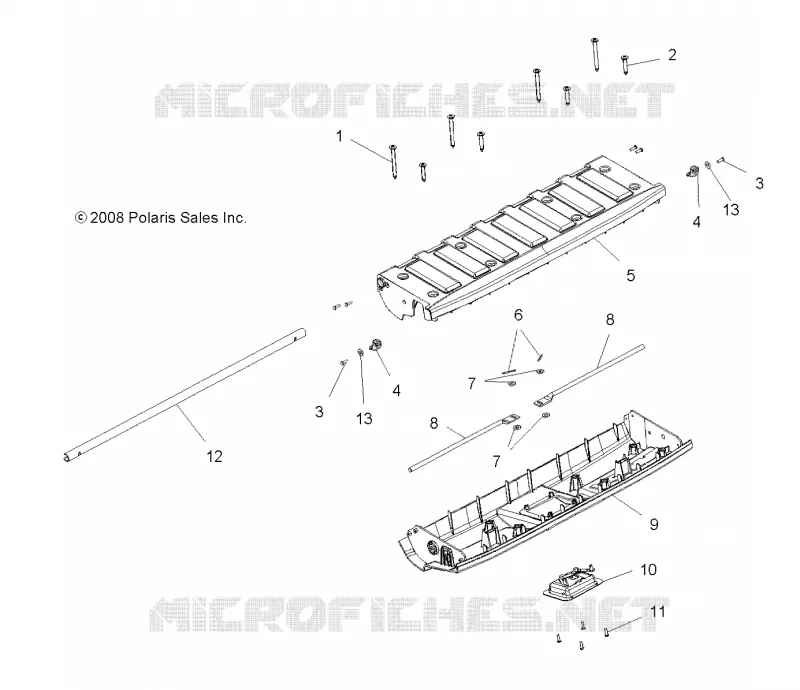

Parts Diagram
Parts Catalog
SKID PLATES
by
TAILGATE BRACKETS
TAILGATE
-
1
2
3
3
4
4
5
6
7
7
8
8
9
10
11
12
13
13
1
1
1
2
3
3
4
5
6
6
7
8
8
8
8
9
9
10
10
11
12
13
-
Asm. Tailgate [Incl. 1-12][Built 12/02/08 and After]
2633854
$782,24 Unit Price incl. VAT
1
Screw
7518357
$10,49 Unit Price incl. VAT
2
Screw
7518356
$10,49 Unit Price incl. VAT
3
SCR-10X1.00 TX PN HI/LO-Y
7518922
$6,29 Unit Price incl. VAT
4
Bumper Tailgate
5413668
$6,29 Unit Price incl. VAT
5
Tailgate Inner Black
5437272070
$330,74 Unit Price incl. VAT
6
PIN HITCH
7661644
$4,19 Unit Price incl. VAT
7
WASHER SHOULDER
7556492
$6,29 Unit Price incl. VAT
8
ROD LATCH TAILGATE
5136783
$52,49 Unit Price incl. VAT
9
Tailgate Outer Black
5437273070
$351,74 Unit Price incl. VAT
10
Latch Paddle Tailgate
7081420
$73,49 Unit Price incl. VAT
11
SCR-#8X3/4-HI/LO-PN-T20TRX-ZTB
7518227
$7,34 Unit Price incl. VAT
12
Tube Pivot Tailgate
5335828329
$99,74 Unit Price incl. VAT
13
WASHER-.20X.67X.048-Y
7555792
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
