SPORTSMAN X2 500 EFI QUAD - A09TN50EA
4
Parts Catalog
SEAT AND OPERATOR
5

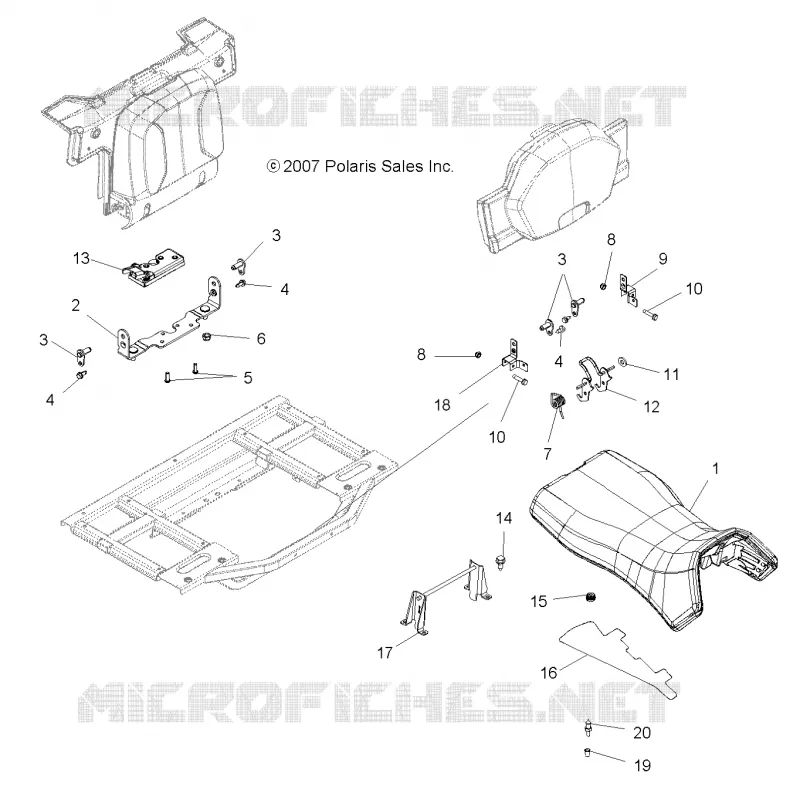

Parts Diagram
Parts Catalog
BODYWORK
by
TAILGATE BRACKETS
SEAT AND OPERATOR
1
1
2
3
3
3
4
4
4
5
6
7
8
8
9
10
10
11
12
13
14
15
16
17
18
19
20
1
2
3
4
5
6
6
7
8
9
9
9
9
10
11
11
12
13
13
13
14
15
16
17
18
1
Asm. Seat Operator Black [AA][Incl. 15 16]
2684133070
2684917-070
$824,24 Unit Price incl. VAT
1
Asm. Cover w/White Decal
2684134
$283,49 Unit Price incl. VAT
2
Pivot Passenger Seat
1015414067
Not Available
3
Pin Pivot
1015413
$41,99 Unit Price incl. VAT
4
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
5
SCREW-1/4-20x3/4 BH TRX GR5-Z
7515177
$5,76 Unit Price incl. VAT
6
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
7
SPRING LATCH
7041370
$17,84 Unit Price incl. VAT
8
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
9
Bracket Pivot Seat LH
5250563
$19,94 Unit Price incl. VAT
10
SCR-HH-1/4-20X1.75 GR5 ZY3
7512130
$7,34 Unit Price incl. VAT
11
SPACER-.26IDX.75ODX.38 NY BLK
7556091
$7,34 Unit Price incl. VAT
12
ROD PASSENGER SEAT BLACK
1016335067
$73,49 Unit Price incl. VAT
13
Latch
7081325
$157,49 Unit Price incl. VAT
14
Screw
7518239
$9,44 Unit Price incl. VAT
15
Grommet Seat Latch
5412994
5418181
$6,29 Unit Price incl. VAT
16
Foil Seat base
5813059
$10,49 Unit Price incl. VAT
17
Lockout Passenger
1015355067
Not Available
18
Bracket Pivot Seat RH
5250564
$19,94 Unit Price incl. VAT
19
Insert-1/4-20
7542143
$10,49 Unit Price incl. VAT
20
Pin Seat Latch
5910306
$19,94 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
