1
Engine displacement
500
2
Year
1989
3
Trim
500 SP - 0890664
4
Parts Catalog
WATER PUMP 400 (4915411541046A)
5
Parts Diagram
Parts Catalog
RECOIL STARTER 650 (4915411541045A)
by
WATER PUMP 500 AND 500 CLASSIC (4915411541047A)

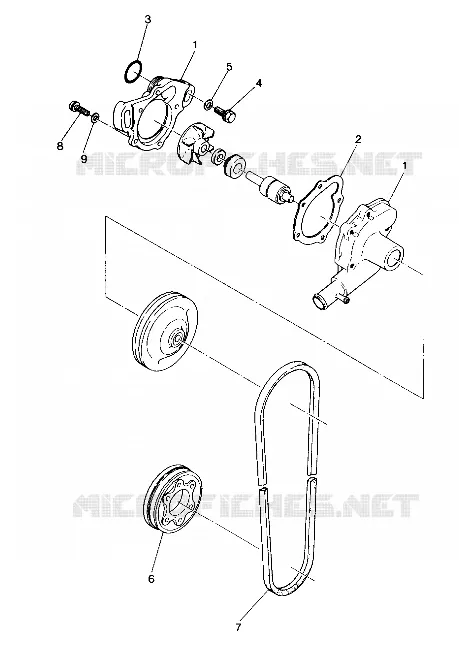

WATER PUMP 400 (4915411541046A)
1
PUMP WATER * (Incl. 2)
3083471
Not Available
2
GASKET WATER PUMP
3083367
Not Available
3
O RING
3082746
Not Available
4
BOLT&WASHER ASM.
3083370
Not Available
5
WASHER
3082505
Not Available
6
PULLEY (DRIVE)
3083371
Not Available
7
BELT
3082747
$102,47 Unit Price incl. VAT
8
SCREW&WASHER ASM.(10)
3083459
Not Available
9
WASHER(10)
3080078
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
