1
Engine displacement
1000
2
Year
2018
3
Trim
RANGER XP 1000 EPS EU / TRACTOR / ZUG
4
Parts Catalog

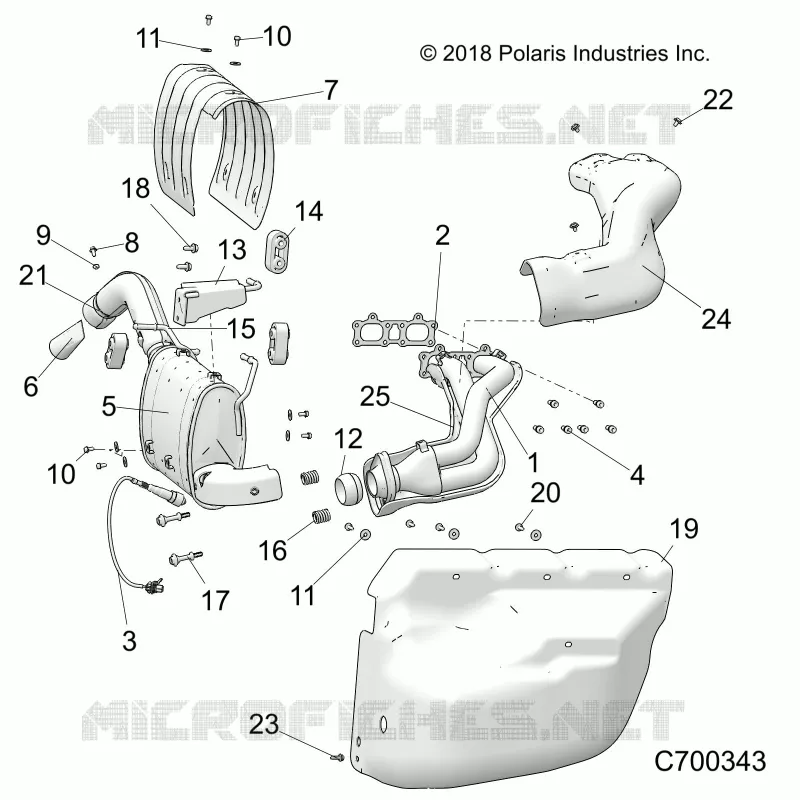

EXHAUST SYSTEM
5
Parts Diagram
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
by
OIL PUMP
EXHAUST SYSTEM
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
ASM. HEADPIPE [INCL. 2 4 12 16 AND 22]
1263086
$666,74 Unit Price incl. VAT
2
GASKET-EXHAUST SEAL
3610184
$89,24 Unit Price incl. VAT
3
SENSOR-LAMBDA LSF 4.2
4011853
$220,49 Unit Price incl. VAT
4
SCR-HXFL-M5X0.8X12 4.8 ZPC NYL
7518984
$14,69 Unit Price incl. VAT
5
ASM-SILENCER [INCL. 6-11 QTY 4 OF 10 &11 13-15 AND 18]
1263004
1264000
$1 349,24 Unit Price incl. VAT
6
WELD-SPARK ARRESTOR AVA875
1262123
$99,74 Unit Price incl. VAT
7
SHIELD-SILENCER
5257719
$136,49 Unit Price incl. VAT
8
SCREW-HXFL-M6X1.0X12 10.9 ZPC
7517257
$17,84 Unit Price incl. VAT
9
NUT-HEX-M6X1.0 8 SPC
7547120
$9,44 Unit Price incl. VAT
10
SCR-1/4-20X1/2 TFM HW-M
7518490
$2,09 Unit Price incl. VAT
11
WASHER-.28 X .81 X .06 ST-M
7555935
$4,19 Unit Price incl. VAT
12
GASKET-DOUBLE SPHERICAL 2#
3610248
$68,24 Unit Price incl. VAT
13
WELD-EXHAUST HANGER BLK
1023346458
$89,24 Unit Price incl. VAT
14
MNT-ISOLATOR [TO 2/27/2023]
5438965
$52,49 Unit Price incl. VAT
15
EXHAUST-HANGER SILENCER
5340578
Not Available
16
SPRING SPHERICAL EXHAUST
7044274
$29,39 Unit Price incl. VAT
17
STUD-SPHERICAL EXHAUST
7520079
$25,19 Unit Price incl. VAT
18
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
19
SHIELD-HEAT FULL RGR
5814507
$283,49 Unit Price incl. VAT
20
SCR-TFHFL-M6X1.0X25 ZOD
7519342
$3,14 Unit Price incl. VAT
21
CLAMP HEAT SHIELD EXHAUST
7081579
$13,64 Unit Price incl. VAT
22
SCR-HHSEMS-M6X1.0X10 A286 LOCK
7520291
$13,64 Unit Price incl. VAT
23
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
24
SHIELD-HEADPIPE TOP
1263051
$209,99 Unit Price incl. VAT
25
SHIELD-HEADPIPE BTM
1263052
$125,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
