1
Engine displacement
500
2
Year
2002
3
Trim
SCRAMBLER 500 4X4 - A02BG50AA
4
Parts Catalog

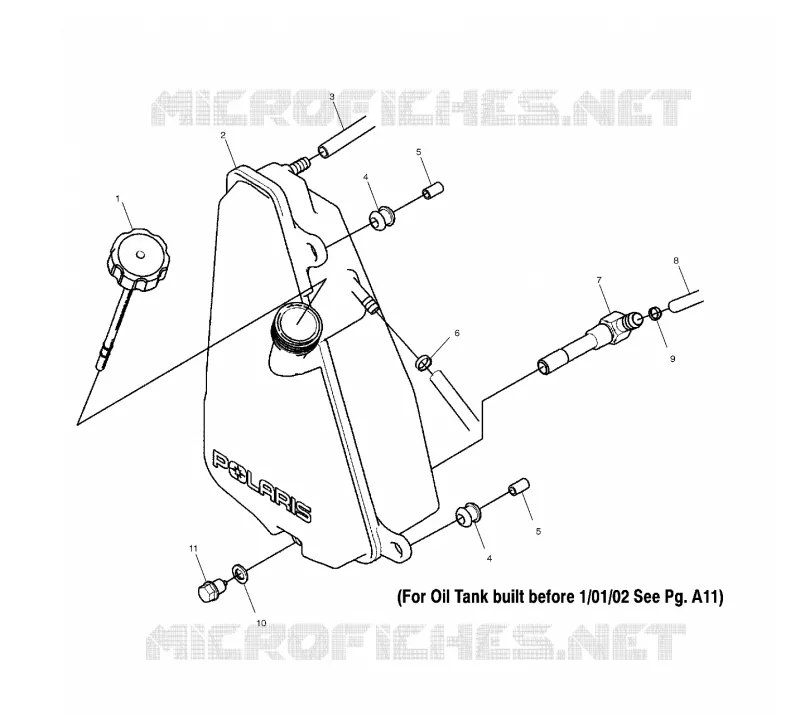

OIL TANK (IF BUILT AFTER 1/01/02)
5
Parts Diagram
Parts Catalog
MAGNETO
by
REAR CAB SEAT
OIL TANK (IF BUILT AFTER 1/01/02)
1
2
3
4
4
5
5
6
7
8
9
10
11
1
Dipstick Oil Tank
5434307
$52,49 Unit Price incl. VAT
2
Tank Oil
1261175
$414,74 Unit Price incl. VAT
3
HOSE BRTHR SLIT 63CM 3/8I.D
5411873
Not Available
4
GROMMET MTG RESERVOIR (10)
5410828
$7,34 Unit Price incl. VAT
5
Bushing
5333204
$41,99 Unit Price incl. VAT
6
Clamp Hose Spring .69 Inch
7080699
$3,14 Unit Price incl. VAT
7
Screen Oil Filter 90 Degree
7052326
$83,99 Unit Price incl. VAT
8
Hose Formed
5412227
$68,24 Unit Price incl. VAT
9
CLAMP-HOSE SPRING .81
7081026
$14,69 Unit Price incl. VAT
10
WASHER
5850135
$5,76 Unit Price incl. VAT
11
PLUG MAG.12 M.
7051524
$62,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
