1
Engine displacement
570
2
Year
2022
3
Trim
SPORTSMAN 570 SP TRAIL PACKAGE
4
Parts Catalog
DRIVE TRAIN, SECONDARY CLUTCH
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, REAR DRIVE SHAFT
by
ELECTRICAL, BATTERY

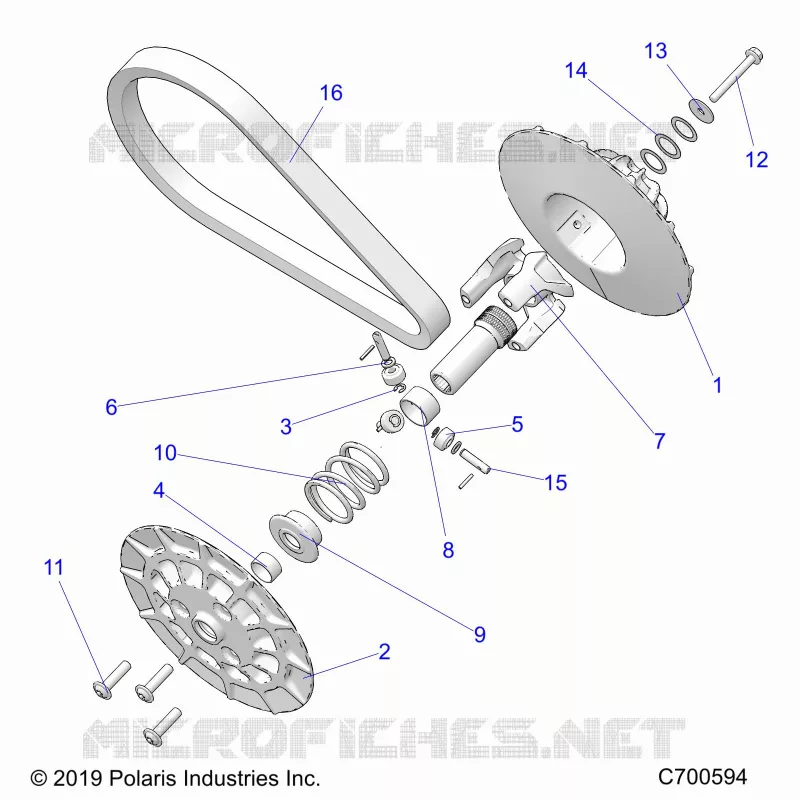

DRIVE TRAIN, SECONDARY CLUTCH
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
ASM-DRIVEN STATIONARY P190X [INCL. 3 5 6 15]
1323610
1327465
$532,34 Unit Price incl. VAT
2
ASM-MOVEABLE P190X CS 570 [INCL. 2 7-11]
1323719
$293,99 Unit Price incl. VAT
2
ASM-MOVABLE SHEAVE P190X CS [INCL. 4]
1323638
1323637
$430,49 Unit Price incl. VAT
3
E-CLIP M6 DIN 6799
7710466
$6,29 Unit Price incl. VAT
4
WRENCH-8MMX10MM OPEN END
Not Available
5
ROLLER-8X22X11.25 PA46 TW341R
5456032
$52,49 Unit Price incl. VAT
6
WSHR-8.4X14 .0X1.6
7556211
$9,44 Unit Price incl. VAT
7
ASM-HELIX P190X 40-56P/70BA
1323720
$335,99 Unit Price incl. VAT
8
BEARING-DU 32X20
3515085
$54,59 Unit Price incl. VAT
9
CUP-DRIVEN SPRING P190X
5633950
$52,49 Unit Price incl. VAT
10
SPRING-DRIVEN 120-210
7045554
$141,74 Unit Price incl. VAT
11
SCR-TXFLBH-M10X1.25X40 10.9SPC
7520698
$9,44 Unit Price incl. VAT
12
SCREW M8x65
7519212
$9,44 Unit Price incl. VAT
13
WSHR-8.4X30. 0X2.0 ZPB
7556219
$12,59 Unit Price incl. VAT
14
SHIM-RING 23.25X32.25X0.5
7557060
$5,24 Unit Price incl. VAT
15
PIN-DRIVEN ROLLER 8MM
5141086
5145858
$7,65 Unit Price incl. VAT
16
BELT-DRIVE P190X 10.05
3211229
$138,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
