1
Engine displacement
0
2
Year
1994
3
Trim
EURO STORM - E940782
4
Parts Catalog

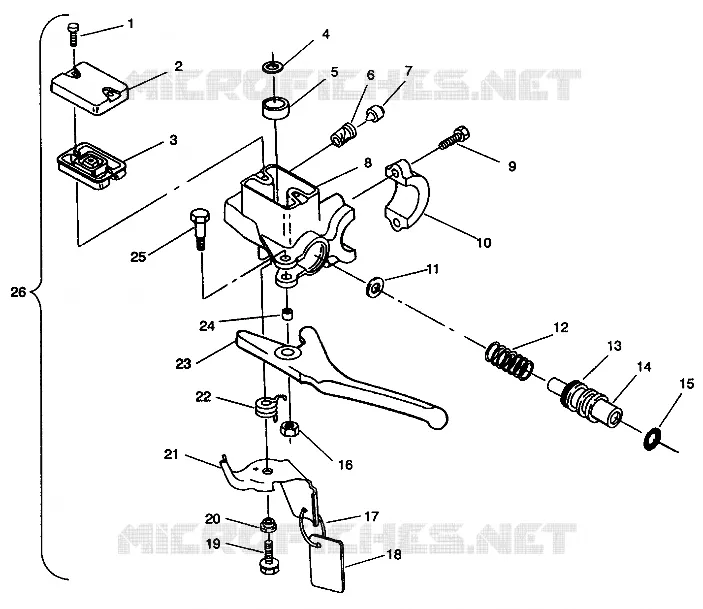

MASTER CYLINDER STORM E940782 AND STORM SKS E948582 (49274427440012)
5
Parts Diagram
Parts Catalog
NOSEPAN Storm E940782 and Storm SKS E940582 (49274427440006)
by
FRONT SUSPENSION AND SKI STORM E940782 AND STORM SKS E940582 (49274427440013)
MASTER CYLINDER STORM E940782 AND STORM SKS E948582 (49274427440012)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
SCREW W/WASHER(10)
7512050
$7,34 Unit Price incl. VAT
2
COVER MASTER CYL.
5630338
Not Available
3
GASKET MASTER CYL.
5410527
$13,64 Unit Price incl. VAT
4
WASHER BAFFLE(10)
1930662
Not Available
5
BAFFLE MASTER CYL.
1930673
Not Available
6
SEAL SIGHT GLASS
1930660
Not Available
7
GLASS SIGHT MASTER CYL.
1930710
Not Available
8
HSG. MASTER CYL. Substituted by 2050056
5130912
Not Available
9
SCREW SOCKET HEAD
7512290
$9,44 Unit Price incl. VAT
10
CLAMP MASTER CYL.
5630342
Not Available
11
WASHER(10)
7555708
$7,34 Unit Price incl. VAT
12
SPRING COMPRESSION (10)
7041203
$52,49 Unit Price incl. VAT
13
U PACKING SEAL
5410164
$17,84 Unit Price incl. VAT
14
PISTON MASTER CYL.
5020520
Not Available
15
O RING-.549X.755X1.03
5410163
$3,14 Unit Price incl. VAT
16
NUT(10)
7542124
7542122
$2,09 Unit Price incl. VAT
17
STRAP PARK.BRAKE TAG
7080447
Not Available
18
TAG-PARK BRAKE WARNING [S99CM][FROM 5/18/2018]
5431389
Not Available
19
SCREW
7511866
$9,44 Unit Price incl. VAT
20
BUSHING PK.BRAKE LEVER
5020545
Not Available
21
LEVER PARK.BRAKE
5222669
Not Available
22
SPRING PK.BRAKE
7041229
$62,99 Unit Price incl. VAT
23
LEVER BRAKE
5630409
Not Available
24
BUSHING BRAKE LEVER
5332931
Not Available
25
BOLT BRAKE LEVER(10)
7512287
Not Available
26
MASTER CYL.ASM W/ST.GLASS Substituted by 2050056 (Incl.1-17)
2050058
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
