Parts Catalog

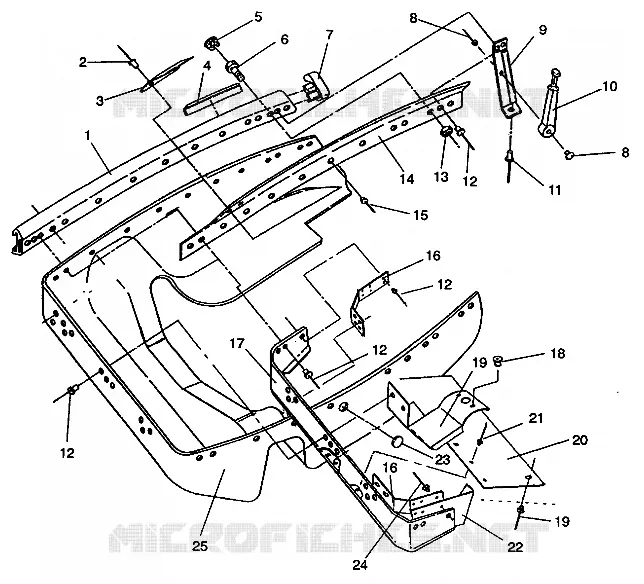

NOSEPAN Storm E940782 and Storm SKS E940582 (49274427440005)
5
Parts Diagram
Parts Catalog
BACKREST STORM SKS E940582 (49274427440004)
by
NOSEPAN Storm E940782 and Storm SKS E940582 (49274427440006)
NOSEPAN Storm E940782 and Storm SKS E940582 (49274427440005)
1
1
2
3
4
5
6
7
7
7
7
8
8
9
9
9
9
10
11
12
12
12
12
13
14
14
14
14
15
16
16
17
18
19
19
20
21
22
23
24
25
1
1
2
3
4
5
6
7
7
7
7
8
8
9
9
9
9
10
11
12
12
12
12
13
14
14
14
14
15
16
16
17
18
19
19
20
21
22
23
24
25
1
1
2
3
4
5
6
7
7
7
7
8
8
9
9
9
9
10
11
12
12
12
12
13
14
14
14
14
15
16
16
17
18
19
19
20
21
22
23
24
25
1
1
2
3
4
5
6
7
7
7
7
8
8
9
9
9
9
10
11
12
12
12
12
13
14
14
14
14
15
16
16
17
18
19
19
20
21
22
23
24
25
1
BUMPER LH EXT. Substituted by 2670151-067 (Blk)
2670114
Not Available
1
BUMPER RH EXT. Substituted by 2670152-067 (Blk)
2670115
Not Available
2
RIVET(50) (Twin ES)
7621318
$1,04 Unit Price incl. VAT
3
GUIDE HOOD
5220984
Not Available
4
REFLECTOR AMBER
2670071
Not Available
5
PLUG-HOLE
7080416
$12,59 Unit Price incl. VAT
6
BOLT(10)
7512296
Not Available
7
CAP BUMPER RH
5431084
$2,72 Unit Price incl. VAT
7
CAP BUMPER LH
5431083
Not Available
8
RIVET (50)
7621601
1015421
$3,66 Unit Price incl. VAT
9
BRACE PAN RH
5220523067
5220523-458
$141,74 Unit Price incl. VAT
9
BRACE PAN LH
5220522067
$141,74 Unit Price incl. VAT
10
STRAP HOOD LATCH
5410370
$47,24 Unit Price incl. VAT
11
RIVET-POP 3/16(.126-.250)-ST-B
7621432
$2,09 Unit Price incl. VAT
12
RIVET(50)
7621452
$2,09 Unit Price incl. VAT
13
NUT FLEXLOC
7542103
$10,49 Unit Price incl. VAT
14
GUIDE HOOD RH
5510134
$33,06 Unit Price incl. VAT
14
GUIDE-HOOD LH
5510133
$31,80 Unit Price incl. VAT
15
RIVET-POP 3/16(.251-.375)-ST-Z
7621402
$2,09 Unit Price incl. VAT
16
BRKT FR.CORNER BLK.
5222976029
Not Available
17
BRACE HINGE
5220951
$73,07 Unit Price incl. VAT
18
POP RIVET(50)
7621418
$2,09 Unit Price incl. VAT
19
BRKT FR.MUFFLER BLK.
5240403029
Not Available
20
SHIELD FR.HEAT
5222977
Not Available
21
RIVET (MONOBOLT) Substituted by 7661637
7661620
7661637
$2,09 Unit Price incl. VAT
22
SHIELD HEAT SIDE
5222978
Not Available
23
PLUG
5410344
$10,49 Unit Price incl. VAT
24
RIVET-CHERRY Q-3/16X.325-Z
7621453
Not Available
25
NOSEPAN VAC.FORM BLK.
5410833067
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
