1
Engine displacement
800
2
Year
2016
3
Trim
800 RMK 155
4
Parts Catalog

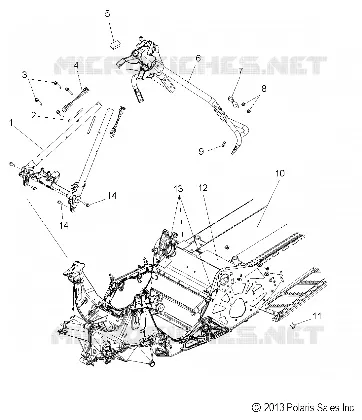

CHASSIS, CHASSIS ASM. AND OVER STRUCTURE
5
Parts Diagram
Parts Catalog
BRAKES, BRAKE SYSTEM
by
DRIVE TRAIN, JACKSHAFT AND DRIVE SHAFT
CHASSIS, CHASSIS ASM. AND OVER STRUCTURE
13
14
14
13
14
1
ASM. FRAME TUBULAR FRONT
1019556
Not Available
2
SEAL-BULB 350CM [BULK SVC]
5521697350
$73,49 Unit Price incl. VAT
3
SCR-HXFL-M8X1.25X50 DP ZODP30
7519245
$7,34 Unit Price incl. VAT
4
SPACER TUBE CAST
5632200
$26,24 Unit Price incl. VAT
5
PAD-RUBBER 1.88X1.38X.5
5813178
$52,49 Unit Price incl. VAT
6
ASM. FRAME TUBULAR REAR
1020168
$1 359,74 Unit Price incl. VAT
7
ASM. STUD PLATE
1016959
$47,24 Unit Price incl. VAT
8
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
9
NUT-HXFL-M6X1.0 8 ZC NYL
7547487
$4,19 Unit Price incl. VAT
10
KIT MY 15 CHASSIS 155 W/CC NAT [INCL. BULKHEAD]
22056891361
Not Available
10
ASM. TUNNEL 155 SERVICE BSC HI MBLK
10188681361
Not Available
11
SCR-RHCAR-M6X1.0X22 8.8 ZPC
7519338
$6,29 Unit Price incl. VAT
12
PAD-6.5X25CM
5813662
$7,34 Unit Price incl. VAT
13
PAD 5X5 CM
5813593
$8,39 Unit Price incl. VAT
14
SCR-HXFL-M8X1.25X25 8.8 ZODP30
7519243
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
