1
Engine displacement
800
2
Year
2016
3
Trim
800 RMK 155
4
Parts Catalog
DRIVE TRAIN, CLUTCH, SECONDARY
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, CLUTCH, PRIMARY
by
CYLINDER

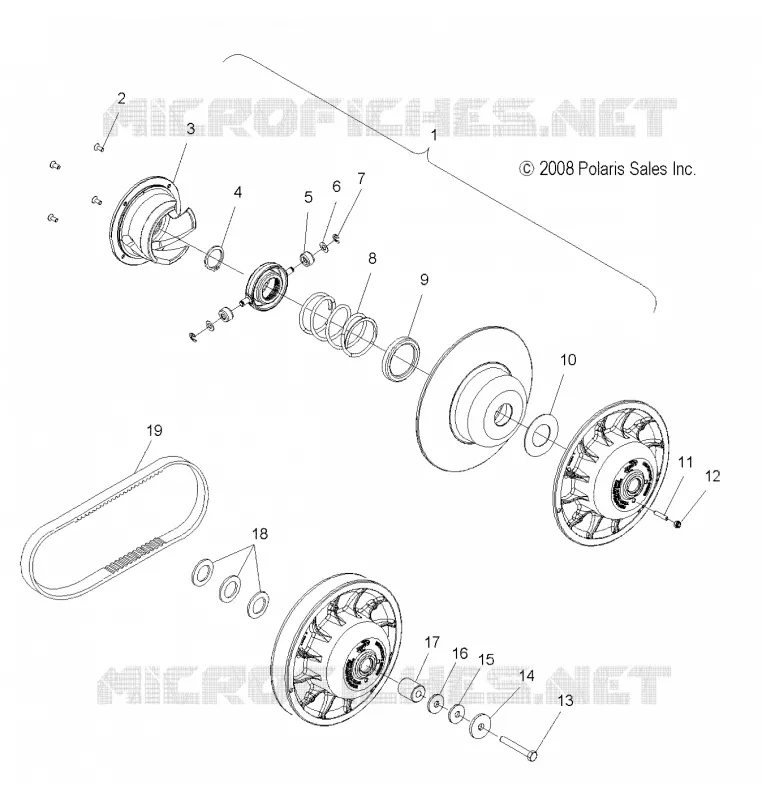

DRIVE TRAIN, CLUTCH, SECONDARY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
18
19
1
ASM. DRIVEN CLUTCH BASIC LWT SPL [Incl. 4-7 9-12]
1323185
Not Available
2
SCREW
3235592
$10,49 Unit Price incl. VAT
3
RAMP DRIVEN 56/42/36 LWER
5135403
$430,49 Unit Price incl. VAT
4
RING RETAINING
7710583
$36,74 Unit Price incl. VAT
5
ROLLER
5434534
$89,24 Unit Price incl. VAT
6
WASHER THRUST
7556226
$10,49 Unit Price incl. VAT
7
RET.E-RING-E T.375-TEAM#130059
7710523
$5,24 Unit Price incl. VAT
8
SPRING-DRVN CLTCH.LH BLK [HIGH ELEVATION SET-UP]
7043063
$115,49 Unit Price incl. VAT
9
WASHER THRUST
7556227
$41,99 Unit Price incl. VAT
10
WASHER
7556370
$41,99 Unit Price incl. VAT
11
SCREW
3234228
3236575
$9,44 Unit Price incl. VAT
12
NUT FLEXLOC
7542103
$10,49 Unit Price incl. VAT
13
SCR-HXFL-M10X1.25X40 ZOD NYL
7519254
$11,54 Unit Price incl. VAT
14
WASHER-FLAT 3/8 TYPE B(W)-SS
7555846
$10,49 Unit Price incl. VAT
15
Washer .105
7555832
$4,19 Unit Price incl. VAT
16
WASHER
7555806
$1,56 Unit Price incl. VAT
17
SPACER CLUTCH
5137323
$15,74 Unit Price incl. VAT
18
WASHER-1.000X1.254X.023-Z
7555917
$4,19 Unit Price incl. VAT
18
WSHR-1.00X1.250X.120-Y
7555864
$4,19 Unit Price incl. VAT
18
BUSHING
7556509
$3,14 Unit Price incl. VAT
19
BELT-DRIVE 11.5CD CVTMBL
3211115
$269,31 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
