1
Engine displacement
330
2
Year
2004
3
Trim
ATP 330 4X4 - A04JD32AA
4
Parts Catalog
CRANKSHAFT AND PISTON
5
Parts Diagram
Parts Catalog
REAR CARRIER
by
SEAT

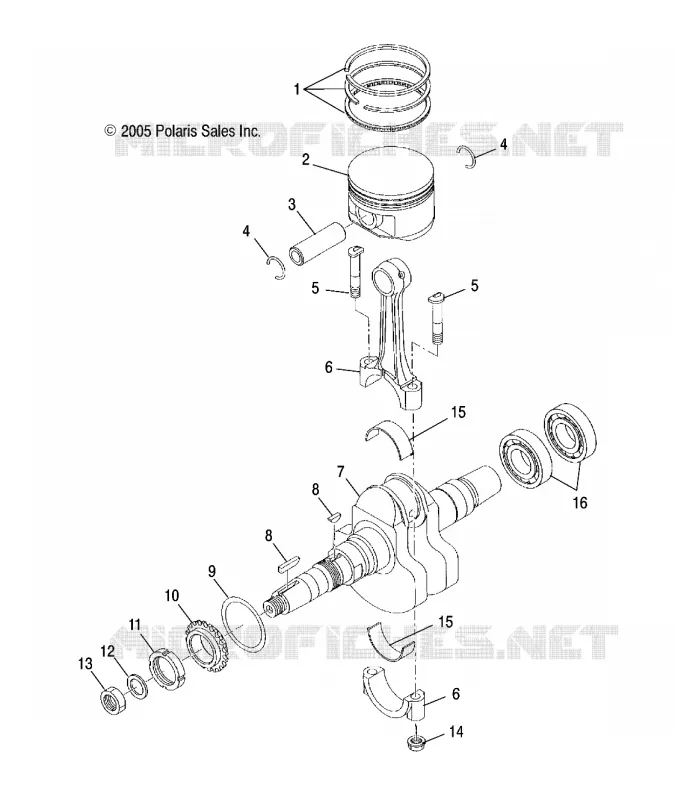

CRANKSHAFT AND PISTON
1
1
1
2
2
2
3
4
4
5
5
6
6
7
8
8
9
9
9
9
10
11
12
13
14
15
15
15
15
15
15
16
1
2
3
4
5
5
5
5
5
5
5
5
5
5
6
6
7
8
9
10
11
12
13
14
15
16
1
1
2
3
4
4
5
6
7
7
8
9
10
11
12
13
14
15
16
1
Set Piston Ring Standard
3087244
$108,14 Unit Price incl. VAT
1
Set Piston Ring .010 Inch/.25MM O/S
3087245
$114,44 Unit Price incl. VAT
1
Set Piston Ring .020 Inch/.50MM O/S
3087246
$108,14 Unit Price incl. VAT
2
Set Piston .010 Inch/.25MM O/S [Incl. 4]
3088820
$242,54 Unit Price incl. VAT
2
Set Piston .020 Inch/.50MM O/S [Incl. 4]
3087243
Not Available
2
Set Piston Standard [Incl. 4]
3087241
$242,54 Unit Price incl. VAT
3
PIN-PISTON
3086846
$40,94 Unit Price incl. VAT
4
CLIP PISTON PIN
3084167
2207579
$356,99 Unit Price incl. VAT
5
Bolt Connecting Rod
3087240
Not Available
6
Asm. Connecting Rod [Incl. 5 14]
3087239
$367,49 Unit Price incl. VAT
7
DESC NOT_AVAILABLE (Incl. 16)
3087119
$1 081,49 Unit Price incl. VAT
8
Key Woodruff
3240168
$47,24 Unit Price incl. VAT
9
SPACER .4
3086434
Not Available
9
SPACER 1.0
3086437
Not Available
9
SPACER .8
3086436
Not Available
9
SPACER .6
3086435
Not Available
10
SPROCKET 1
3086492
$52,49 Unit Price incl. VAT
11
NUT SLIT
3085528
$68,24 Unit Price incl. VAT
12
Washer
3086767
Not Available
13
LOCKNUT
3083905
Not Available
14
NUT
3086426
Not Available
15
BEARING (STD)
3086427
Not Available
15
BEARING-.25MM (0.25 U/S)
3086799
$27,29 Unit Price incl. VAT
15
BEARING-.05MM (0.05 U/S)
3086798
Not Available
16
Bearing Ball
3085815
$74,54 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
