1
Engine displacement
500
2
Year
2015
3
Trim
500 WIDETRAK LX
4
Parts Catalog
DRIVE TRAIN, DRIVE SHAFT AND JACK SHAFT
5
Parts Diagram
Parts Catalog
BRAKES, BRAKE SYSTEM
by
DRIVE TRAIN, GEARCASE (1 OF 2)

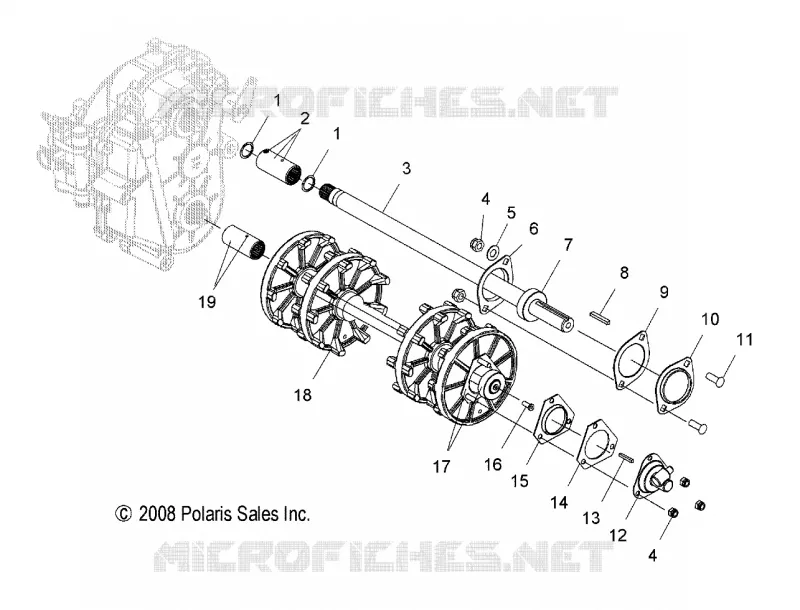

DRIVE TRAIN, DRIVE SHAFT AND JACK SHAFT
1
1
19
19
19
3
4
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
17
18
19
19
1
O-RING
5410630
$3,66 Unit Price incl. VAT
2
SCREW
7517446
$15,74 Unit Price incl. VAT
2
ASM. COUPLER W/GREASE [INCL. FITTING & SCREW]
1332219
$220,49 Unit Price incl. VAT
2
FITTING LUBRICATION
7080437
$26,24 Unit Price incl. VAT
3
ASM. JACKSHAFT [INCL. 7]
1332256
$713,99 Unit Price incl. VAT
4
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
5
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
6
FLANGETTE 2 BOLT
5222393
5270869
$36,74 Unit Price incl. VAT
7
BEARING
3514525
$54,59 Unit Price incl. VAT
8
KEY
7721132
$41,99 Unit Price incl. VAT
9
GASKET JACKSHAFT 2-BOLT
5830135
$5,24 Unit Price incl. VAT
10
FLANGETTE W/GREASE GROOVE 2-BOLT
5222647
$47,24 Unit Price incl. VAT
11
SCR-RHCAR-5/16-18X0.75 GR5 ZY3
7512377
$9,44 Unit Price incl. VAT
12
Adaptor w/Zerk Drive
3280540
$188,99 Unit Price incl. VAT
12
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
13
SQ. KEY SPEEDOMETER (10)
3280017
$26,24 Unit Price incl. VAT
14
GASKET
5830012
$4,19 Unit Price incl. VAT
15
FLANGETTE OFFSET W/HOLE
5243529
$26,24 Unit Price incl. VAT
16
BUSHING METAL SPEEDO
3280019
$20,99 Unit Price incl. VAT
17
BEARING
3514448
3514617
$54,59 Unit Price incl. VAT
17
ASM. FLANGETTE W/SCREWS
1012945
$173,24 Unit Price incl. VAT
18
Asm. Drive Shaft [Incl.29-31]
1590450
$939,74 Unit Price incl. VAT
19
ASM. COUPLER W/GREASE ZERK
1332260
$325,49 Unit Price incl. VAT
19
FITTING LUBRICATION
7080437
$26,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
