1
Engine displacement
1000
2
Year
2017
3
Trim
RZR XP 1000 MD
4
Parts Catalog

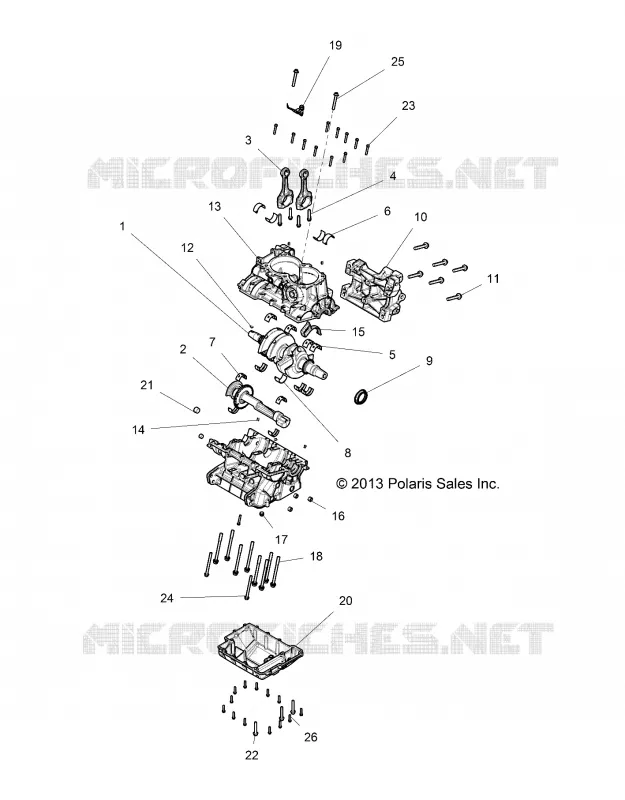

ENGINE, CRANKCASE AND CRANKSHAFT
5
Parts Diagram
Parts Catalog
ELECTRICAL, DASH INSTRUMENTS AND CONTROLS
by
ENGINE, CYLINDER HEAD AND VALVES
ENGINE, CRANKCASE AND CRANKSHAFT
1
2
3
4
5
5
5
5
5
6
6
6
6
7
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
ASM. CRANKSHAFT
1204832
3023103
$1 900,49 Unit Price incl. VAT
2
ASM-BALANCE SHAFT
1204835
$677,24 Unit Price incl. VAT
3
ASM. CONNECTING ROD [INCL. 4]
1204907
3024568
$157,49 Unit Price incl. VAT
4
SCREW CONNECTING ROD [USED W/ 1204473][IF BUILT BEFORE 10/19/15]
7519310
7520378
$10,49 Unit Price incl. VAT
5
BEARING-MAIN G-90 41MM GRN
3514662003
$16,79 Unit Price incl. VAT
5
BEARING-MAIN G-90 41MM BLU
3514662002
$16,79 Unit Price incl. VAT
5
BEARING-MAIN G-90 41MM
3514662001
$16,79 Unit Price incl. VAT
5
BEARING-MAIN G-90 41MM RED
3514662005
$16,79 Unit Price incl. VAT
5
BEARING-MAIN G-90 41MM YLW
3514662004
$16,79 Unit Price incl. VAT
6
BEARING CONNECTING ROD GREEN
3514663003
$15,74 Unit Price incl. VAT
6
BEARING CONNECTING ROD WHITE
3514663001
$15,74 Unit Price incl. VAT
6
BEARING CONNECTING ROD YELLOW
3514663004
$15,74 Unit Price incl. VAT
6
BEARING CONNECTING ROD BLUE
3514663002
$15,74 Unit Price incl. VAT
7
BEARING BALANCE SHAFT
3514756
$16,79 Unit Price incl. VAT
8
BEARING-MAIN CNTR LWR YELLOW
3514803004
$20,99 Unit Price incl. VAT
8
BEARING-MAIN CNTR LWR BLU
3514803002
$20,99 Unit Price incl. VAT
8
BEARING-MAIN CNTR LWR GREEN
3514803003
$20,99 Unit Price incl. VAT
9
SEAL-FLANGE LUBE VITON
3610176
$57,74 Unit Price incl. VAT
10
BRKT-TRANSJOINT MACH
5137795
5143718
$272,99 Unit Price incl. VAT
11
BOLT-M10X1.5X60MM8.8HEXDRILOCK
7520467
$9,44 Unit Price incl. VAT
12
KEY-WOODRUFF 4X5
7721122
$13,64 Unit Price incl. VAT
13
KIT CRANKCASE [INCL. 14-19]
2206114
2207373
$2 320,49 Unit Price incl. VAT
14
PIN-DOWEL M6X10
5136879
5132835
$4,19 Unit Price incl. VAT
15
DIVERTER OIL DRAIN
5452616
$47,24 Unit Price incl. VAT
16
PLUG-3/8 NPT HX/SOC W/SEALANT
7052413
$8,39 Unit Price incl. VAT
17
PLUG-HEX SOCKET 1/4X18 SEALANT
7518835
$10,49 Unit Price incl. VAT
18
SCREW [TO 12/1/2019]
7519141
7521267
$25,19 Unit Price incl. VAT
19
JET PISTON
3022856
$83,99 Unit Price incl. VAT
20
COVER SUMP
5137873
5143719
$204,74 Unit Price incl. VAT
21
PLUG-1/2-14 NPT
7051520
$15,74 Unit Price incl. VAT
22
SCR-M8X1.25X50 HX/FL-Y
7517793
$10,49 Unit Price incl. VAT
23
SCR-HXFL-M6X1.0X35 8.8 ZY3
7518578
$7,34 Unit Price incl. VAT
24
SCR-HXFLG M8X1.25X90
7519154
$13,64 Unit Price incl. VAT
25
SCR-HXFLG M8X1.25X60
7519186
$10,49 Unit Price incl. VAT
26
SCREW-HXFLG M6X1.0X25 10.9
7519297
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
