1
Engine displacement
500
2
Year
1997
3
Trim
500 RMK - 0972964
4
Parts Catalog
TUNNEL (500) 500 0972764 AND EUROPEAN 500 E972764 (4938393839A005)
5
Parts Diagram
Parts Catalog
OIL PUMP 500 0972764, EUROPEAN 500 E972764, 500 SKS 0972564, EUROPEAN 500 S (4938393839D006)
by
TUNNEL (SKS, RMK) 500 SKS 0972564, EUROPEAN 500 SKS E972564 AND 500 RMK 097 (4938393839A007)

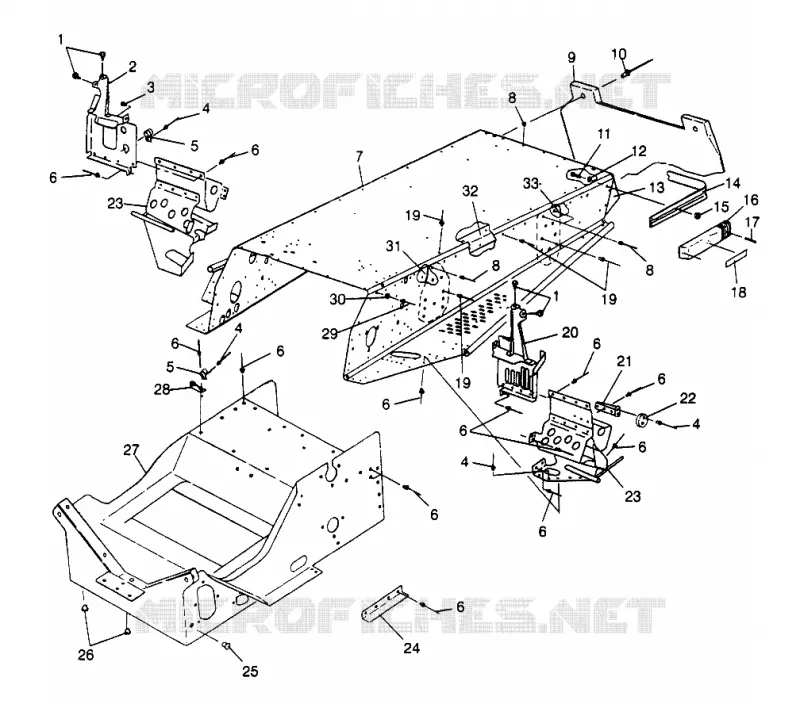

TUNNEL (500) 500 0972764 AND EUROPEAN 500 E972764 (4938393839A005)
1
BUMPER HOOD
5410768
$4,82 Unit Price incl. VAT
2
MT CONSOLE RH
1011952067
$435,74 Unit Price incl. VAT
3
SCREW(10)
7512057
Not Available
4
RIVET-POP 3/16(.126-.250)-ST-B
7621432
$2,09 Unit Price incl. VAT
5
GUIDE RECOIL
5431385
$19,94 Unit Price incl. VAT
6
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
7
TUNNEL LIQ. Substituted by 1012378-067 (500)
1012378
Not Available
8
RIVET SEMI-TUBE (50)
7661841
$1,04 Unit Price incl. VAT
9
FLAP SNOW (XTRA-10) Substituted by 5432149-1106
5432149
Not Available
10
POP RIVET(50)
7621418
$2,09 Unit Price incl. VAT
11
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
12
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
13
PANEL TUNNELBACK
5241053067
$395,84 Unit Price incl. VAT
14
BUMPER REAR STD.
5224674067
Not Available
15
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
16
CAP BUMPER BLK.
5430930070
Not Available
17
SCREW(10)
7511863
$3,66 Unit Price incl. VAT
18
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
19
RIVET SEMI-TUBE (50)
7661840
Not Available
20
MT CONSOLE LH
1011951067
$56,90 Unit Price incl. VAT
21
SUPPORT BUMPERSIDE BLK.
5240294067
Not Available
22
STOP SIDEPANEL BUMPER
5411172
Not Available
23
FOOTREST ASM LH BLK. Substituted by 1012544
1011934
Not Available
23
FOOTREST ASM RH BLK. Substituted by 1012545
1011935
Not Available
24
GUARD ADAPTER GUIDE
5222857
$26,24 Unit Price incl. VAT
25
PLUG-HOLE
7080416
$12,59 Unit Price incl. VAT
26
PLUG-HOLE
7080398
$10,49 Unit Price incl. VAT
27
BULKHEAD ASM (500) BLK. Substituted by 1012607-067
1012481067
Not Available
28
BRKT ROPE GUIDE BLK. (StarLite GT)
5222687067
$89,24 Unit Price incl. VAT
29
RIVET(50)
7621222
$1,04 Unit Price incl. VAT
30
SNAP-MALE(10)
7080227
Not Available
31
PAD RH FR.SUSP.MTG. Substituted by 5244287-067
5241304067
Not Available
31
PAD LH FR.SUSP.MTG. Substituted by 5244287-067
5241303067
Not Available
32
BRACE TUNNEL REINF.CORNER Substituted by 5244452
5241852
Not Available
33
PAD LH R.SUSP.
5241268067
Not Available
33
PAD RH R.SUSP.
5241269067
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
