1
Engine displacement
800
2
Year
2008
3
Trim
SPORTSMAN TOURING 800 EFI INTL - A08DN76FC
4
Parts Catalog
FRONT BUMPER AND MOUNTING
5
Parts Diagram
Parts Catalog
DECALS
by
CABIN
FRONT BUMPER AND MOUNTING
1
2
2
2
2
3
3
4
5
6
6
6
6
7
8
9
10
10
11
12
13
14
15
16
16
1
2
3
4
4
4
5
6
7
8
9
10
11
12
13
1
Bumper Front Black
2637086070
Not Available
2
Support Rack Black RH
1014592067
Not Available
2
Support Rack Black LH
1014591067
$309,74 Unit Price incl. VAT
3
SCREW HXFL-5/16-18X0.75 GR5 ZY3
7518341
$9,44 Unit Price incl. VAT
4
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
5
Guard Brush Black
1015033067
1017050-067
$493,49 Unit Price incl. VAT
6
Shield Side Radiator LH
5434314
$68,24 Unit Price incl. VAT
6
Shield Side Radiator RH
5434315
Not Available
7
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
8
GROMMET-RUBBER MOUNT .25#
5412504
$7,34 Unit Price incl. VAT
9
Cover Radiator (If built after 11/01/02)
5435046
$99,74 Unit Price incl. VAT
10
SCR-5/16-18X3/4 TFM HW T/R-Y
7515399
$2,09 Unit Price incl. VAT
11
Grill Brush Guard
5247507067
$99,74 Unit Price incl. VAT
12
Screw
7518046
$9,44 Unit Price incl. VAT
13
Panel Bumper Front Black
5435357070
$104,99 Unit Price incl. VAT
14
Screw
7518383
$7,34 Unit Price incl. VAT
15
Screw
7518382
$9,44 Unit Price incl. VAT
16
WASHER- .327X.875X.090 FL-M
7556341
$3,14 Unit Price incl. VAT

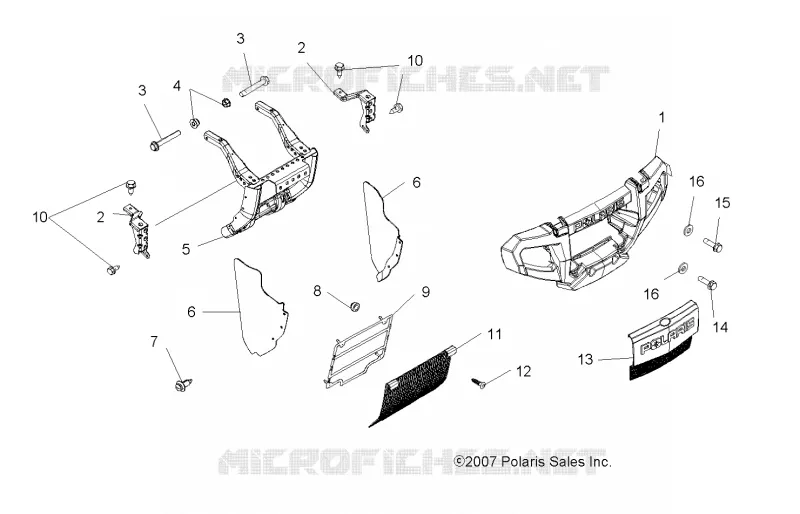

Find the detailed FRONT BUMPER AND MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
