1
Engine displacement
325
2
Year
2002
3
Trim
XPEDITION 325 - A02CK32AA
4
Parts Catalog
FUEL TANK AND CARBURETOR MOUNTING
5
Parts Diagram
Parts Catalog
FRONT RACK BUMPER MOUNTING
by
AIR BOX

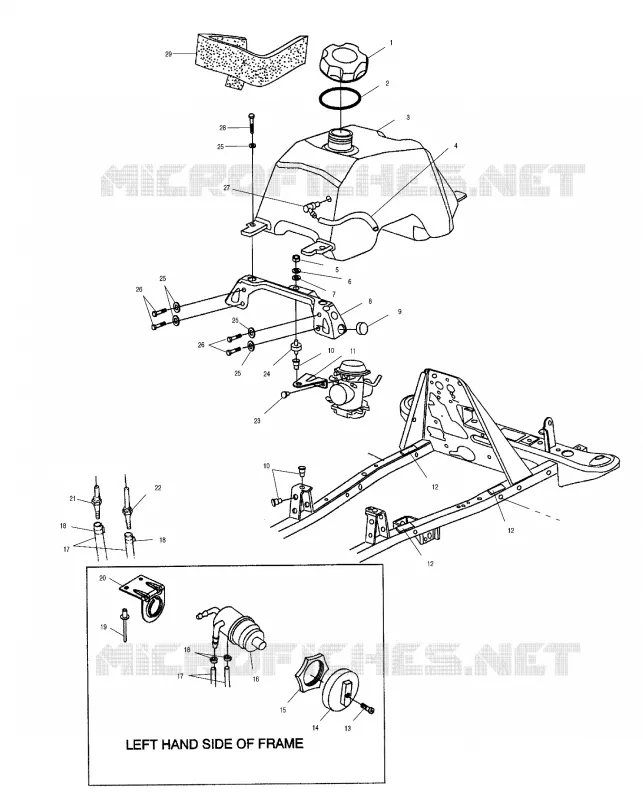

FUEL TANK AND CARBURETOR MOUNTING
1
2
3
4
5
6
7
8
9
10
10
11
12
12
12
13
14
15
16
17
17
18
18
18
19
20
21
22
23
24
25
25
25
25
26
26
27
28
29
1
Cap Gas Tank
5433687
5450389
$36,74 Unit Price incl. VAT
2
Gasket
5812123
$10,49 Unit Price incl. VAT
3
TANK FUEL ASM. (Incl. 5 22 23)
2520174
Not Available
4
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
5
NUT-1/4-20 HEX-Y
7542105
$7,34 Unit Price incl. VAT
6
WASHER(10)
7552605
$9,44 Unit Price incl. VAT
7
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
8
Bracket Carburetor Support
5245672067
$21,20 Unit Price incl. VAT
9
BUMPER RUBBER
5410414
$6,29 Unit Price incl. VAT
10
NUTSERT-1/4-20 HEX .165 GRIP
7547069
$7,34 Unit Price incl. VAT
11
Mount Carb
5245674067
Not Available
12
PAD
5810317
Not Available
13
SCR-4MMX.7X10MM-PH/PN Y LOC
7517505
$3,14 Unit Price incl. VAT
14
KNOB FUEL VALVE (If built before 1/14/00)
5432559
$20,99 Unit Price incl. VAT
15
NUT FUELVALVE ATV (If built before 1/14/00)
5432733
Not Available
16
VALVE 3-WAY (If built before 1/14/00)
7052161
$83,99 Unit Price incl. VAT
17
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
18
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
19
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
20
Bracket Fuel Valve
5240577067
Not Available
21
FITTING FUEL OUT MAIN Y (Black)
7052146
$52,49 Unit Price incl. VAT
22
Fitting Fuel Outlet Reserve
7052149
$41,99 Unit Price incl. VAT
23
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
24
MOUNT CARBURETOR
3110050
$19,94 Unit Price incl. VAT
25
WASHER-FL .281X.750X.062-Y
7555859
$2,09 Unit Price incl. VAT
26
BOLT LOCK
7512276
$9,44 Unit Price incl. VAT
27
Vent Tank
5431053
$47,24 Unit Price incl. VAT
28
BOLT
7512277
$9,44 Unit Price incl. VAT
29
FOAM-SEAL 17#
5811899
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
