Engine displacement
500
2
Year
2002
3
Trim
500 WIDETRAK LX
4
Parts Catalog
PISTON CRANKSHAFT
5

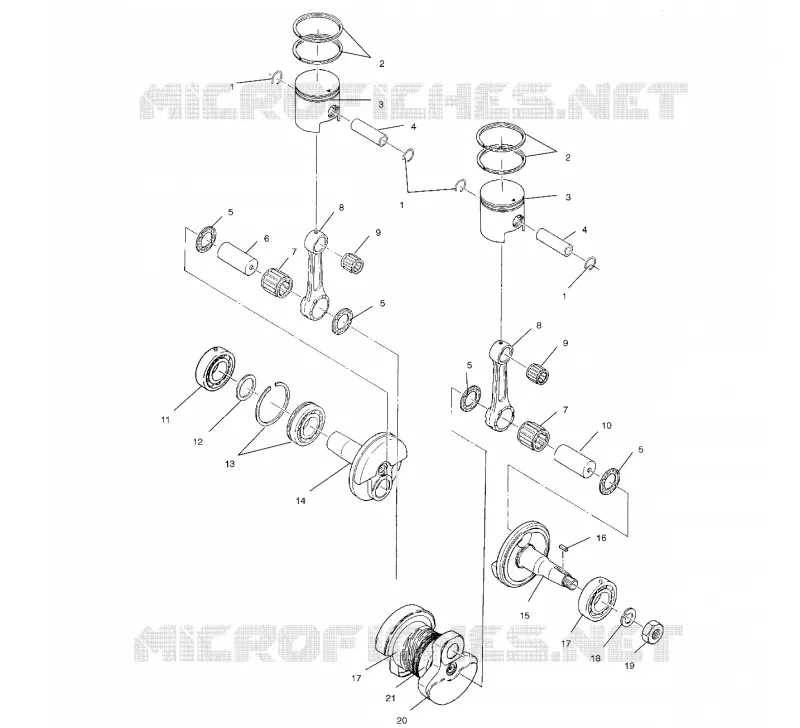

Parts Diagram
Parts Catalog
CYLINDER
by
WATER PUMP/FUEL PUMP
PISTON CRANKSHAFT
1
CLIP PISTON PIN (10)
3083839
$7,34 Unit Price incl. VAT
2
RING PISTON (.020 O/S) (.020 Oversize)
3084344
Not Available
2
RING PISTON STD. (Standard)
3084342
$68,24 Unit Price incl. VAT
2
RING PISTON (.010 O/S) (.010 Oversize)
3084343
Not Available
3
PISTON (0.50 O/S) Substituted by 3085460 (0.50mm/.020IO/S)
3085871
Not Available
3
PISTON (STD) Substituted by 3085458 (Standard)
3085869
$208,94 Unit Price incl. VAT
3
PISTON (0.25 O/S) Substituted by 3085459 (0.25mm/.010IO/S)
3085870
Not Available
4
PIN PISTON
3083858
$40,94 Unit Price incl. VAT
5
SPACER CRANK PIN
3083277
$27,29 Unit Price incl. VAT
6
CRANK PIN 2
3083456
5141629
$57,74 Unit Price incl. VAT
7
BEARING LARGE END
3085628
$54,59 Unit Price incl. VAT
8
ROD-CONNECTING
3083252
$236,24 Unit Price incl. VAT
9
BEARING END SMALL
3083216
3515064
$25,71 Unit Price incl. VAT
10
PIN CRANK
3083233
Not Available
11
BALL BEARING
3085205
Not Available
12
SPACER
3085203
$11,54 Unit Price incl. VAT
13
BALL BEARING
3085204
Not Available
14
CRANKSHAFT 3 (PTO Side)
3085202
Not Available
15
CRANKSHAFT (Incl. 5-8 10-15 17 20)
3086997
Not Available
15
CRANKSHAFT 1(MAG SIDE) (Mag Side)
3086835
$590,09 Unit Price incl. VAT
16
KEY Substituted by 3081543
3080130
3081543
$26,24 Unit Price incl. VAT
17
BEARING BALL
3084601
$72,96 Unit Price incl. VAT
18
WASHER SPRING
3083094
7557228
$6,29 Unit Price incl. VAT
19
NUT
3083093
7547895
$7,34 Unit Price incl. VAT
20
CRANKSHAFT 2 (Incl. 6)
3083713
$806,39 Unit Price incl. VAT
21
BEARING BALL
3086878
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
