1
Engine displacement
0
2
Year
1998
3
Trim
MAGNUM 2X4 - W98AA42A
4
Parts Catalog

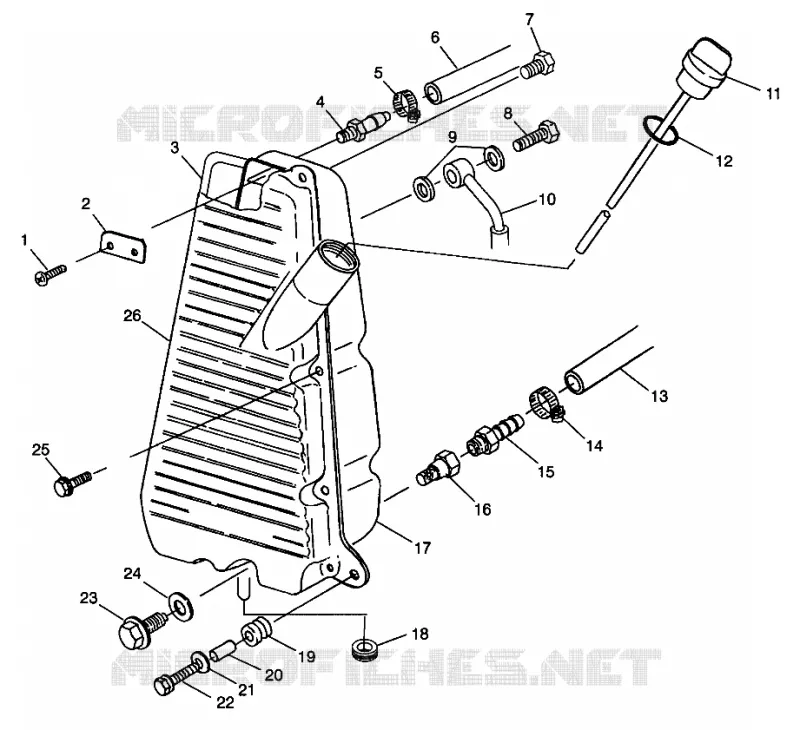

OIL TANK MAGNUM 2X4 W98AA42A (4945524552A012)
5
Parts Diagram
Parts Catalog
FUEL TANK MAGNUM 2X4 W98AA42A (4945524552A011)
by
HEADLIGHT MAGNUM 2X4 W98AA42A (4945524552A013)
OIL TANK MAGNUM 2X4 W98AA42A (4945524552A012)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
SCR-6X3/8 PH TR HD GR5-Y
7511848
$7,34 Unit Price incl. VAT
2
PLATE VENT OIL TANK
5211523
$22,46 Unit Price incl. VAT
3
GASKET OIL RESERVOIR
5830053
$78,74 Unit Price incl. VAT
4
Fitting
7052163
Not Available
5
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
6
LINE BREATHER 3/8 ID.
8450073600
$136,49 Unit Price incl. VAT
7
PLUG
7051535
Not Available
8
BOLT
7517102
Not Available
9
WASHER COPPER 14MM.
7555896
$2,61 Unit Price incl. VAT
10
TUBE BANJO RETURN
7052152
Not Available
11
DIPSTICK
5431677
Not Available
12
O RING
5410889
Not Available
13
HOSE 3/8#ID
5411036
Not Available
14
CLAMP-HOSE .875-SS
7080474
$13,64 Unit Price incl. VAT
15
FITTING HOSE BR
7052106
$11,01 Unit Price incl. VAT
16
SCREEN OIL FILTER
2530014
$15,95 Unit Price incl. VAT
17
TANK LH OIL (Side Drain)
5131785
$211,56 Unit Price incl. VAT
18
GROMMET
5411042
5412507
$12,59 Unit Price incl. VAT
19
GROMMET MTG RESERVOIR (10)
5410828
$7,34 Unit Price incl. VAT
20
Bushing
5333204
$41,99 Unit Price incl. VAT
21
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
22
SCR-1/4-20X1 1/4-TRIRD HX WH-Y
7512242
$4,19 Unit Price incl. VAT
23
PLUG MAG.12 M.
7051524
$62,99 Unit Price incl. VAT
24
WASHER
5850135
$5,76 Unit Price incl. VAT
25
Screw
7515158
$9,44 Unit Price incl. VAT
26
TANK OIL RH.
5131004
$139,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
