1
Engine displacement
550
2
Year
2013
3
Trim
SPORTSMAN TOURING 550 EPS INTL - A13DN5EFL
4
Parts Catalog
ENGINE, MOUNTING
5
Parts Diagram
Parts Catalog
MAGNETO COVER
by
OIL FILTER

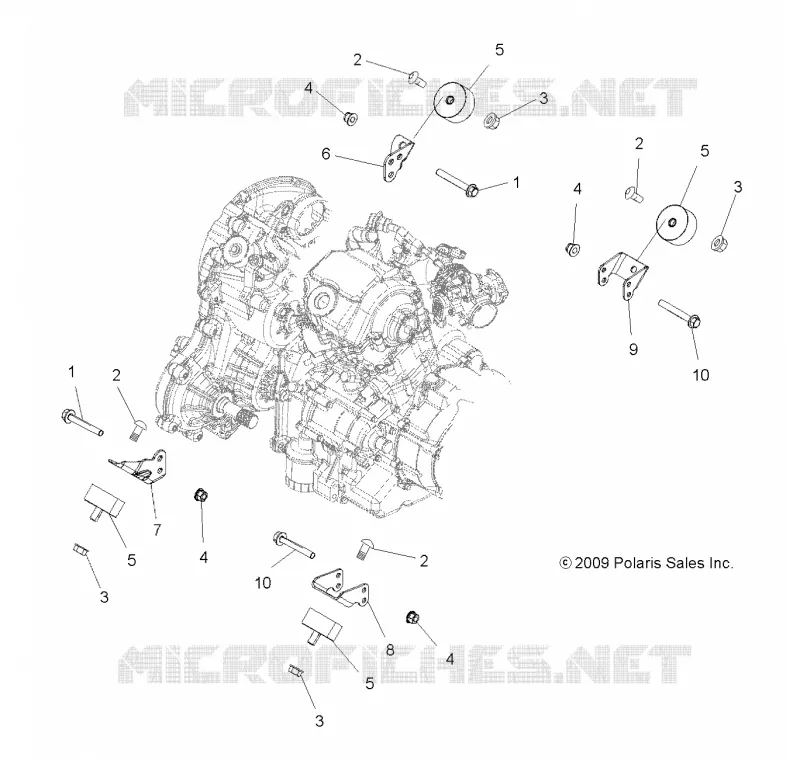

ENGINE, MOUNTING
1
1
2
2
2
2
3
3
3
3
4
4
4
4
5
5
5
5
6
7
8
9
10
10
1
SCR-SH-M8X1.25X30 8.8 ZPC
7516732
$3,14 Unit Price incl. VAT
2
SCR-M10X1.5X14 TRX/TR PATCH
7519032
$9,44 Unit Price incl. VAT
3
NUT-M10X1.5 HXFLG NYLON INS
7547313
$2,09 Unit Price incl. VAT
4
NUT-M8X1.25 HXFLG NYLON INS
7547317
7548028
$5,24 Unit Price incl. VAT
5
ISOLATOR-M10X1.5 M/F 65 DURO
3022154
3024013
$68,24 Unit Price incl. VAT
6
BRACKET TRANSMISSION LH
5253340
$20,99 Unit Price incl. VAT
7
BRACKET TRANSMISSION RH
5252091
$83,99 Unit Price incl. VAT
8
Bracket Engine Mount RH
5251715
$62,99 Unit Price incl. VAT
9
Bracket Engine Mount LH
5251714
$173,24 Unit Price incl. VAT
10
SCR-M8X1.25X75 8.8 HX/FL ZOD
7518955
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
