SPORTSMAN X2 500 EFI QUAD - A09TN50EA
4
Parts Catalog
BATTERY
5

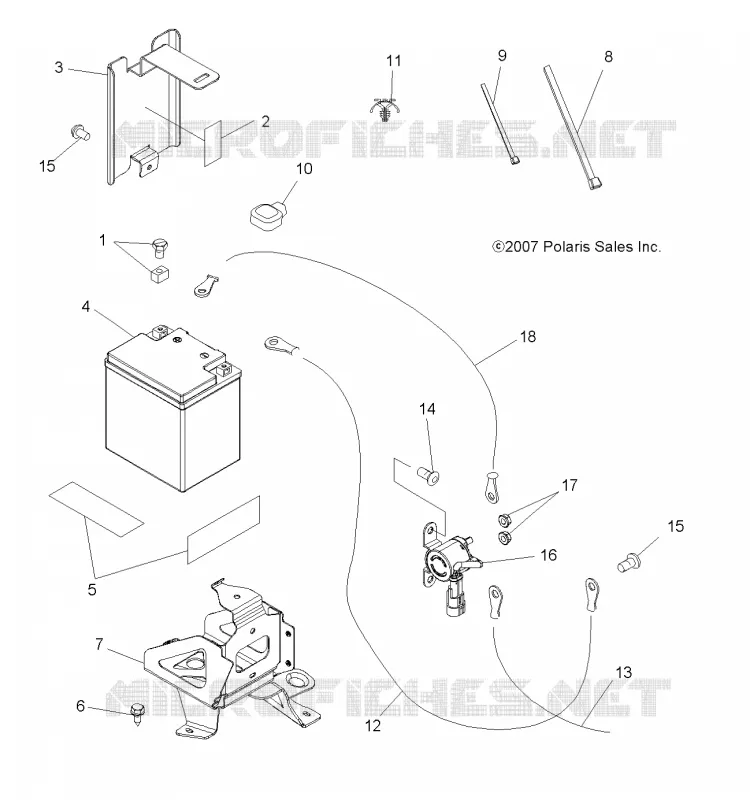

Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE SHIFT FORKS
by
BULBS
BATTERY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
1
2
2
2
3
3
4
4
5
5
6
7
8
9
1
KIT BATTERY BOLT [INCL. BOLTS NUTS]
2202213
$6,29 Unit Price incl. VAT
2
Pad Battery
5813165
Not Available
3
Shield Heat Battery
5250933
$89,24 Unit Price incl. VAT
4
Battery Top Mount
4010595
4014609
$283,49 Unit Price incl. VAT
5
PAD-BATTERY NOT SHOWN
5810290
5810290-CO
$13,64 Unit Price incl. VAT
6
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
7
Box Battery Black
1016332067
Not Available
8
CABLE-TIE 25-76MM WEATH.-RES.
7080492
$5,24 Unit Price incl. VAT
9
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
10
Boot Battery Cable
5413458
Not Available
11
MOUNT CABLE TIE
7080965
$13,64 Unit Price incl. VAT
12
Cable Battery/Frame
4011552
$52,49 Unit Price incl. VAT
13
CABLE-21# SOL/START RED
4010093
$89,24 Unit Price incl. VAT
14
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
15
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
16
SOENOID STARTER C1100 [INCL 2][A2]
4012001
4081641
$59,84 Unit Price incl. VAT
17
NUT-HXFLGHD M6 SERRATED
7547270
$7,34 Unit Price incl. VAT
18
Cable Battery/Solenoid [Incl. Boot][Built 10/02/07 and After]
4012096
$11,96 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
