REAR SUSPENSION
5
Parts Diagram
Parts Catalog
SUSPENSION, A-ARM AND STRUT MOUNTING
by
CONTROLS, THROTTLE ASSEMBLY, THROTTLE LEVER KIT

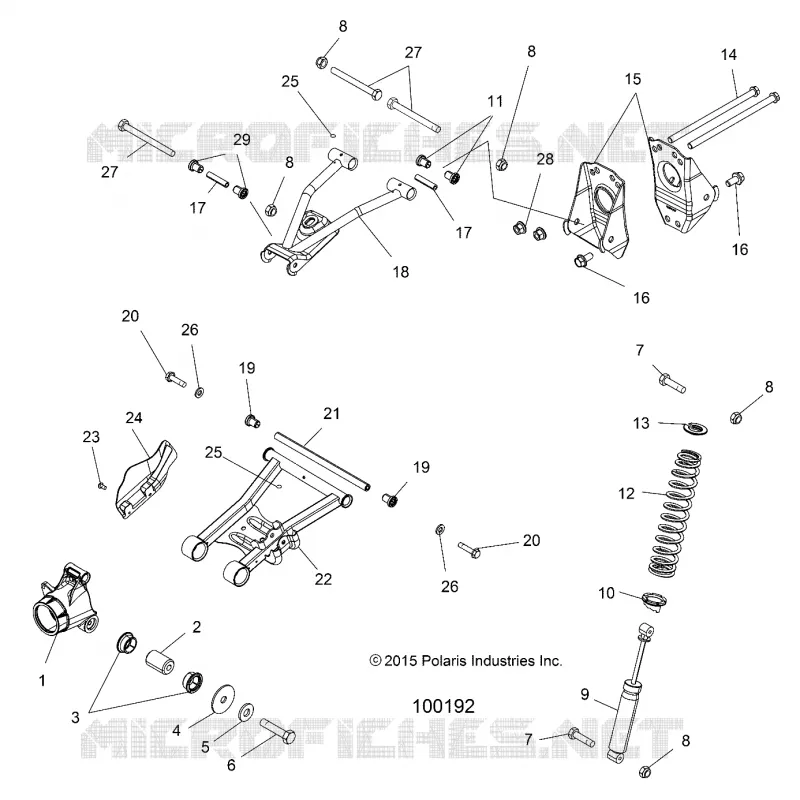

REAR SUSPENSION
1
2
3
4
5
6
7
7
8
8
8
8
8
9
10
19
12
13
14
15
15
16
17
17
18
18
19
19
20
20
21
22
22
23
24
24
25
25
25
26
27
27
28
29
1
CARRIER-BEARING WHEEL (MACH)
5135563
$121,79 Unit Price incl. VAT
2
BUSHING BEARING CARRIER
5632291
$41,99 Unit Price incl. VAT
3
BUSHING CONTROL LOWER BLACK
5438902
$8,39 Unit Price incl. VAT
4
WASHER FLAT
7555740
$3,14 Unit Price incl. VAT
5
WASHER LOCK
7552614
$3,14 Unit Price incl. VAT
6
Screw
7517873
$4,19 Unit Price incl. VAT
7
SCREW
7515415
$2,09 Unit Price incl. VAT
8
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
9
SHOCK REAR
7043100
$167,99 Unit Price incl. VAT
10
CAM-ADJUSTING SPRING STEEL
5253768
$68,24 Unit Price incl. VAT
11
ASM-BUSHING HD W/SEAL 6.75 FLG (HEAVY DUTY)
1543326
$24,14 Unit Price incl. VAT
12
SPRING-100# 11.3 FL M.BLK
7044453458
$89,24 Unit Price incl. VAT
13
RETAINER-SPRING STEEL
5251753
$19,94 Unit Price incl. VAT
14
BOLT-3/8-16X7 HX FLNG GR5-Y
7518365
$13,64 Unit Price incl. VAT
15
BRACKET CONTROL ARM PIVOT BLACK
5254267329
5273355-329
$83,99 Unit Price incl. VAT
16
SCR-3/8-16X3/4 HX FLNG-GR5-Y
7517632
$10,49 Unit Price incl. VAT
17
Shaft A-Arm. Short
5020826
$23,09 Unit Price incl. VAT
18
ARM CONTROL UPPER BLACK LH
1017747458
$115,49 Unit Price incl. VAT
18
ARM CONTROL UPPER BLACK RH
1017748458
$110,24 Unit Price incl. VAT
20
SCR-3/8-24X1 3/4 HX GR5 P30 Y [TO 9/9/2019]
7520340
7521149
$6,29 Unit Price incl. VAT
21
SHAFT-A-ARM C-BORE
5139929
$52,49 Unit Price incl. VAT
22
CONTROL LOWER MATTE BLACK LH
1015888458
$173,24 Unit Price incl. VAT
22
CONTROL LOWER MATTE BLACK RH
1015889458
$173,24 Unit Price incl. VAT
23
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
24
SHIELD CV REAR RH MATTE BLACK
5435009070
$47,24 Unit Price incl. VAT
24
SHIELD CV REAR LH MATTE BLACK
5435008070
$47,24 Unit Price incl. VAT
25
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
26
WASHER
7556153
$3,66 Unit Price incl. VAT
27
SCR-3/8-24X3 3/4 HX CP GR5-Y
7515472
$4,19 Unit Price incl. VAT
28
NUT-FLANGED 3/8-16 NYLON
7547180
$4,19 Unit Price incl. VAT
29
Bushing A-Arm. Short Black [TO 9/9/2023]
5438895
5439270
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
