ENGINE, CRANKSHAFT AND PISTON
5

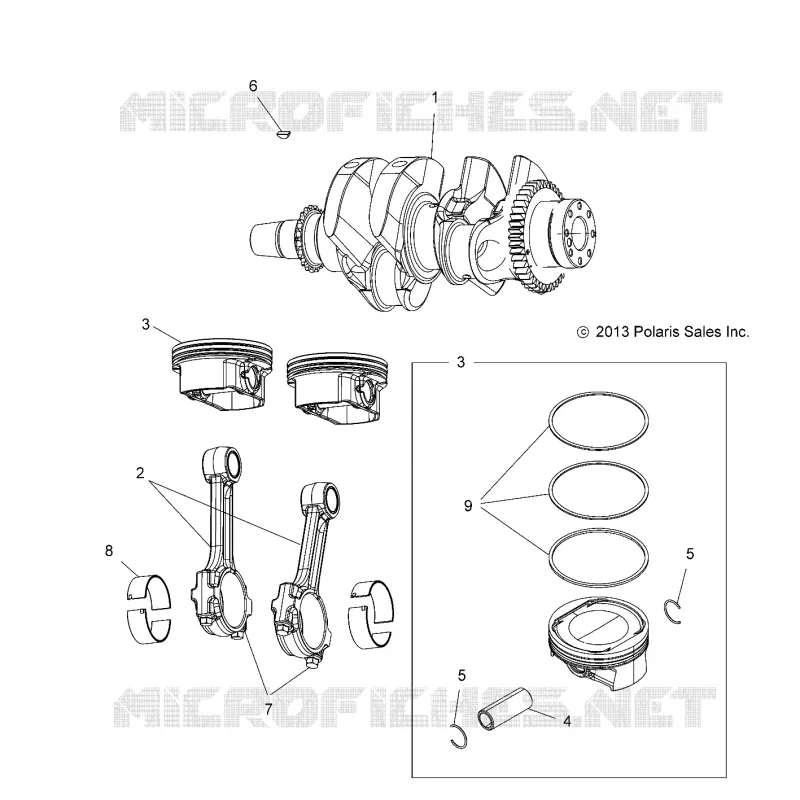

Parts Diagram
Parts Catalog
COOLING BYPASS
by
ENGINE, ENGINE AND TRANSMISSION MOUNTING
ENGINE, CRANKSHAFT AND PISTON
1
2
2
3
3
4
4
4
6
7
8
8
8
8
8
9
1
KIT-CRANKSHAFT 952 SPM [INCL. CRANKSHAFT MAIN BEARINGS]
2205143
$1 952,99 Unit Price incl. VAT
2
KIT CONNECTING ROD
2204634
$430,49 Unit Price incl. VAT
2
BUSHING PISTON PIN
7556569
1205821
$430,49 Unit Price incl. VAT
3
KIT PISTON [INCL. PISTON PIN CLIPS ALL RINGS]
2205145
$256,19 Unit Price incl. VAT
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
KEY-WOODRUFF 4X5
7721122
$13,64 Unit Price incl. VAT
7
BOLT
7519263
$31,49 Unit Price incl. VAT
8
BEARING CONNECTING ROD BLUE
3514645027
3514989-027
$16,79 Unit Price incl. VAT
8
BEARING CONNECTING ROD
3514645
Not Available
8
BEARING CONNECTING ROD RED
3514645015
3514989-015
$16,79 Unit Price incl. VAT
8
BEARING CONNECTING ROD YELLOW
3514645053
3514989-053
$16,79 Unit Price incl. VAT
8
BEARING CONNECTING ROD WHITE
3514645016
3514989-016
$16,79 Unit Price incl. VAT
9
KIT PISTON RINGS [CONTAINS UPPER LOWER OIL CONTROL RING]
2205146
$128,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
