1
Engine displacement
1000
2
Year
2017
3
Trim
RANGER CREW XP 1000 EPS ALL OPTIONS
4
Parts Catalog

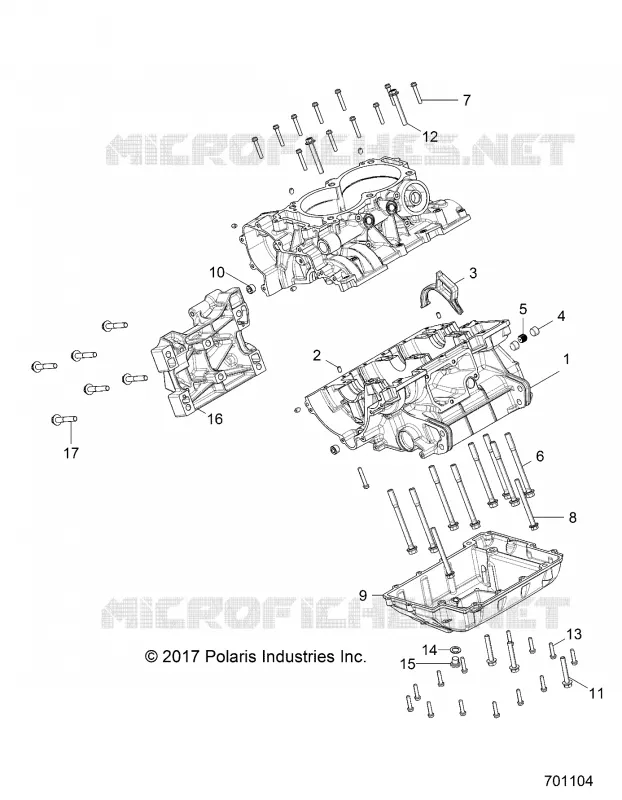

CRANKCASE
5
Parts Diagram
Parts Catalog
COOLING, THERMOSTAT AND BYPASS
by
ENGINE, ENGINE MOUNTING
CRANKCASE
7
13
14
15
16
17
1
KIT CRANKCASE [INCL. 2 3 7-10 15][IF BUILT AFTER 9/12/15]
2206113
2207371
$2 294,24 Unit Price incl. VAT
2
PIN-DOWEL M6X10
5136879
5132835
$4,19 Unit Price incl. VAT
3
DIVERTER OIL DRAIN
5452616
$47,24 Unit Price incl. VAT
4
PLUG-3/8 NPT HX/SOC W/SEALANT
7052413
$8,39 Unit Price incl. VAT
5
PLUG-HEX SOCKET 1/4X18 SEALANT
7518835
$10,49 Unit Price incl. VAT
6
SCREW [TO 12/1/2019]
7519141
7521267
$25,19 Unit Price incl. VAT
7
SCR-HXFL-M6X1.0X35 8.8 ZY3
7518578
$7,34 Unit Price incl. VAT
8
SCR-HXFLG M8X1.25X90
7519154
$13,64 Unit Price incl. VAT
9
COVER SUMP
5137873
5143719
$204,74 Unit Price incl. VAT
10
PLUG-1/2-14 NPT
7051520
$15,74 Unit Price incl. VAT
11
SCR-M8X1.25X50 HX/FL-Y
7517793
$10,49 Unit Price incl. VAT
12
SCR-HXFLG M8X1.25X60
7519186
$10,49 Unit Price incl. VAT
13
SCREW-HXFLG M6X1.0X25 10.9
7519297
$7,34 Unit Price incl. VAT
14
WASHER-19X12X1.3 COPPER
5812232
$3,14 Unit Price incl. VAT
15
PLUG-SOCKET M12X1.5 DIN 908A
7052306
$31,49 Unit Price incl. VAT
16
BRKT-TRANSJOINT MACH
5137795
5143718
$272,99 Unit Price incl. VAT
17
BOLT-M10X1.5X60MM8.8HEXDRILOCK
7520467
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
