1
Engine displacement
0
2
Year
1994
3
Trim
EURO LITE - E943433
4
Parts Catalog
CARBURETOR LITE E943433 (49273427340029)
5

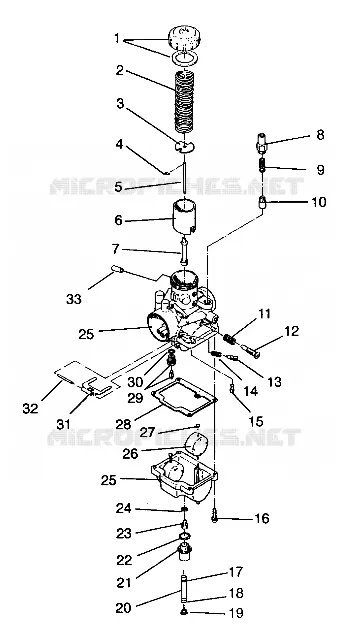

Parts Diagram
Parts Catalog
PISTON CRANKSHAFT LITE E943433 (49273427340028)
by
OIL PUMP ASSEMBLY LITE E943433 (49273427340030)
CARBURETOR LITE E943433 (49273427340029)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
29
30
31
32
33
1
TOP MIX CHAMBER (Incl. 3)
3130060
Not Available
2
SPRING THROTTLE
3130354
$62,99 Unit Price incl. VAT
3
PLATE THROTTLE
3130002
$47,24 Unit Price incl. VAT
4
E RING(10) Substituted by 3130508
3130003
3130508
$12,59 Unit Price incl. VAT
5
JET NEEDLE
3130155
$52,49 Unit Price incl. VAT
6
VALVE THROTTLE 2.5 (2.5AL)
3130468
$73,49 Unit Price incl. VAT
7
NEEDLE JET O-6 (169)
3130469
$68,24 Unit Price incl. VAT
8
CAP PLUNGER
3130359
$31,49 Unit Price incl. VAT
9
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
10
ASM. PLUNGER
3130328
$68,24 Unit Price incl. VAT
11
SPRING THROTTLE ADJUSTER
3130010
$18,89 Unit Price incl. VAT
12
SCREW THROTTLE STOP
3130324
$36,74 Unit Price incl. VAT
13
SCREW AIR
3130011
$36,74 Unit Price incl. VAT
14
SPRING AIR ADJUST
3130012
$18,89 Unit Price incl. VAT
15
JET PILOT #35(10)
3130066
$18,89 Unit Price incl. VAT
16
ASM. SCREW AND WASHER
3130025
$6,29 Unit Price incl. VAT
17
CLAMP
7080236
$3,14 Unit Price incl. VAT
18
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
19
TRAP-PLUG Substituted by 5431893
5431820
5431893
$26,24 Unit Price incl. VAT
20
FUELLINE 600CM 5/16 ID.
8450057600
Not Available
21
FITTING SEDIMENT Substituted by 3130573
5020476
$18,68 Unit Price incl. VAT
22
O-RING
3130239
Not Available
23
JET MAIN #145 Substituted by 3130112
3130351
Not Available
24
WASHER
3130014
$3,14 Unit Price incl. VAT
25
CARBURETOR (LITE) Substituted by 3130688 (Incl. 1-16 21-32)
3130467
Not Available
26
FLOAT ASM
3130021
$83,99 Unit Price incl. VAT
27
CAP
3130237
$8,39 Unit Price incl. VAT
28
GASKET FLOAT CHAMBER
3130020
$31,49 Unit Price incl. VAT
29
VALVE NEEDLE Substituted by 3131146
3130016
3131146
$99,74 Unit Price incl. VAT
30
PACKING NEEDLE VALVE
3130017
$7,34 Unit Price incl. VAT
31
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
32
PIN FLOAT
3130043
Not Available
33
CAP
3130479
$31,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
