1
Engine displacement
1000
2
Year
2015
3
Trim
scrambler-xp-1000-eu
4
Parts Catalog

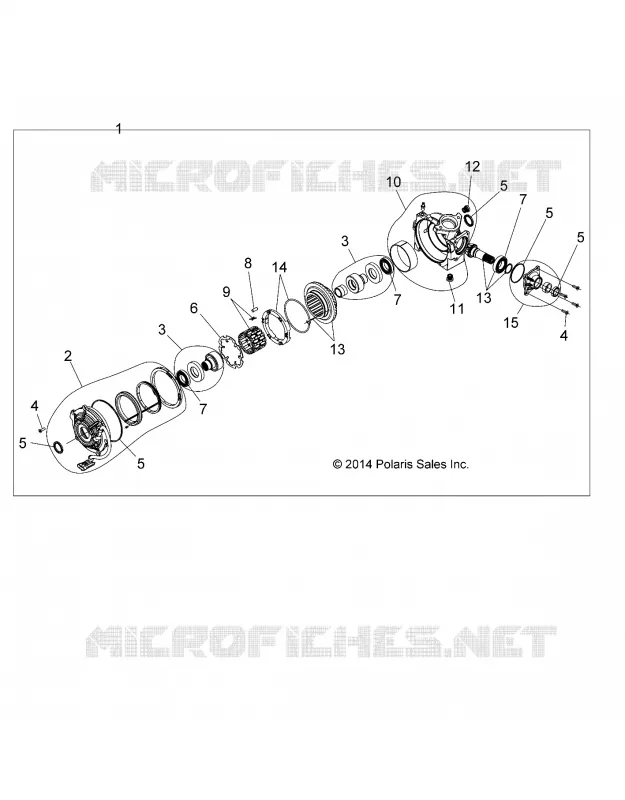

DRIVE TRAIN, FRONT GEARCASE INTERNALS
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, DRIVE COUPLER
by
DRIVE TRAIN, DRIVE SHAFT, FRONT
DRIVE TRAIN, FRONT GEARCASE INTERNALS
1
2
3
3
4
4
5
5
5
5
5
6
7
7
7
8
9
10
11
12
13
13
14
15
1
2
3
4
5
6
7
1
ASM. FRONT GEARCASE
1333391
$3 008,24 Unit Price incl. VAT
2
ASSY COVR OUTLET [INCL. O-RING 4WD COIL SPACER CLIP INSERT COVER PIN SEAL WIRING]
3235634
3236667
$955,49 Unit Price incl. VAT
3
ASSY OUTPUT HUB - MALE AND FEMALE
3235169
3236683
$782,24 Unit Price incl. VAT
4
COVER FASTENERS [INCL. QTY 10 SCREWS]
3235433
$68,24 Unit Price incl. VAT
5
COMPLETE SEAL REPAIR [INCL. ALL O-RINGS ALL SEALS]
3235434
3236671
$136,49 Unit Price incl. VAT
6
PLATE 4WD ARMATURE
3235485
3236048
$209,99 Unit Price incl. VAT
7
KIT BEARINGS [INCL. ALL BALL BEARINGS]
3235435
$202,64 Unit Price incl. VAT
8
K-CLUTCH ROLLS W/COMPLETE SET OF ROLLER
3235624
$12,59 Unit Price incl. VAT
9
ASM-ROLL CAGE [INCL. CAGE AND COMPLETE SET OF CLIPS]
3235625
$325,49 Unit Price incl. VAT
10
ASM. GEARCASE [INCL. CASE BUSHING PLUGS SEAL VENT]
3235436
3236680
$1 343,99 Unit Price incl. VAT
11
KIT-PLUG DRAIN
2203738
$68,24 Unit Price incl. VAT
12
KIT-PLUG FILL
2203739
$83,99 Unit Price incl. VAT
13
KIT GEAR HOUSING & PINION GEAR [INCL. PINION PIN BEARING SNAP RING RING GEAR]
3235636
3239382
$1 280,99 Unit Price incl. VAT
14
KIT-TORSION SPRING AND RETAINER [INCLUDES 22 & 26]
3235712
$68,24 Unit Price incl. VAT
15
KIT INPUT COVER [INCL. O-RING COVER BUSHING SEAL]
3235438
3236143
$194,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
