1
Engine displacement
550
2
Year
2001
3
Trim
550 SUPERSPORT EDGE
4
Parts Catalog

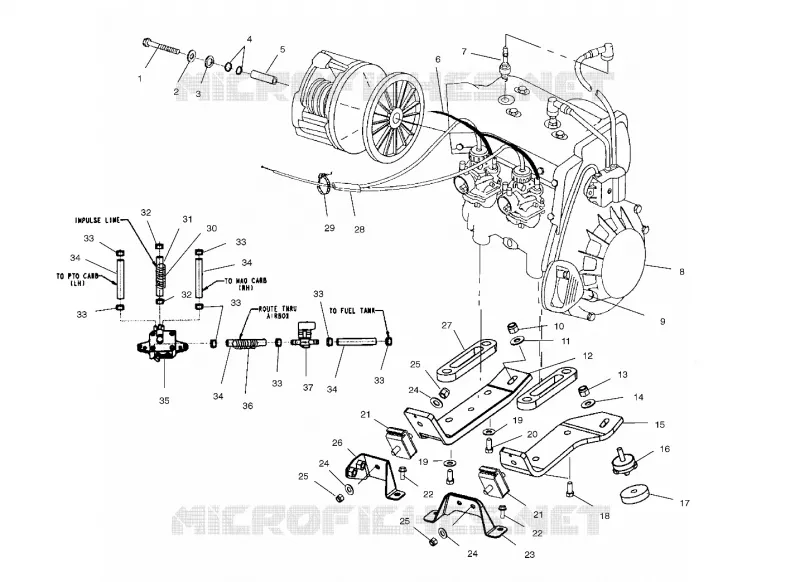

ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH
by
PISTON CRANKSHAFT
ENGINE MOUNTING
1
SCREW
7517776
7519287
$52,49 Unit Price incl. VAT
2
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
3
WASHER CLUTCH RETAINER
5010287
$18,89 Unit Price incl. VAT
4
O-RING CLUTCH BOLT
5410507
$2,09 Unit Price incl. VAT
5
SPACER CLUTCH BOLT
5020513
$60,89 Unit Price incl. VAT
6
CABLE CHOKE
7080290
$194,24 Unit Price incl. VAT
7
Plug Spark NGK BR9ES
3070163
$7,34 Unit Price incl. VAT
8
ENG.(S.B.)EC55PM-010 (See Footnote)
3085618
Not Available
9
HANDLE RECOIL Substituted by 5431499-070
5431499
$26,24 Unit Price incl. VAT
10
NUT-HEX-3/8-16 A ZTB NYL
7542451
$2,09 Unit Price incl. VAT
11
WASHER FLAT
7555893
$1,56 Unit Price incl. VAT
12
STRAP-ENGINE MOUNT LH 550
5245015
$51,54 Unit Price incl. VAT
13
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
14
WASHER-3/8-INT LK(1220-00)-Z
7556180
Not Available
15
STRAP-ENGINE MOUNT RH 550
5245016
$52,80 Unit Price incl. VAT
16
MOUNT-ENGINE 3/8-16
3021220
Not Available
17
SPACER-ENGINE MOUNT .44
5245117
Not Available
18
SCREW
7517399
Not Available
19
WASHER LOCK(10)
7553101
$7,34 Unit Price incl. VAT
20
BOLT(10)
7512515
$5,76 Unit Price incl. VAT
21
MOUNT-ENGINE 3/8-16 RECT
3021206
$115,49 Unit Price incl. VAT
22
SCREW
7517854
$10,49 Unit Price incl. VAT
23
BRKT-ENGINE MOUNT RH FORMED
5245044
Not Available
24
WASHER
7555806
$1,56 Unit Price incl. VAT
25
NUT-3/8-16 FLEXLOCK THIN-Y
7547008
$11,54 Unit Price incl. VAT
26
WELD-ENG MOUNT BRKT LH
1013397
Not Available
27
SPACER ENGINE
5245020
$40,94 Unit Price incl. VAT
28
CABLE-THROTTLE
7080888
Not Available
29
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
30
Conduit Convoluted [SVC]
8360052305
$62,99 Unit Price incl. VAT
31
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
32
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
33
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
34
TUBING-ETHER ERETHNE 600CM SVC Substituted by 8350018-160
8350018600
8450117-250
$99,74 Unit Price incl. VAT
35
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
36
CONDUIT CONVOL(6 CM) Substituted by 4010051-15
401005106
Not Available
37
VALVE FUEL PLASTIC INLINE
7052248
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
