1
Engine displacement
400
2
Year
1995
3
Trim
400l-2x4-w957540
4
Parts Catalog
FRONT WHEEL ASSEMBLY 2X4 400L W957540 (4930093009B002)
5
Parts Diagram
Parts Catalog
FUEL TANK ASSEMBLY 2X4 400L W957540 (4930093009A012)
by
FRONT BRAKE 2X4 400L W957540 (4930093009B003)

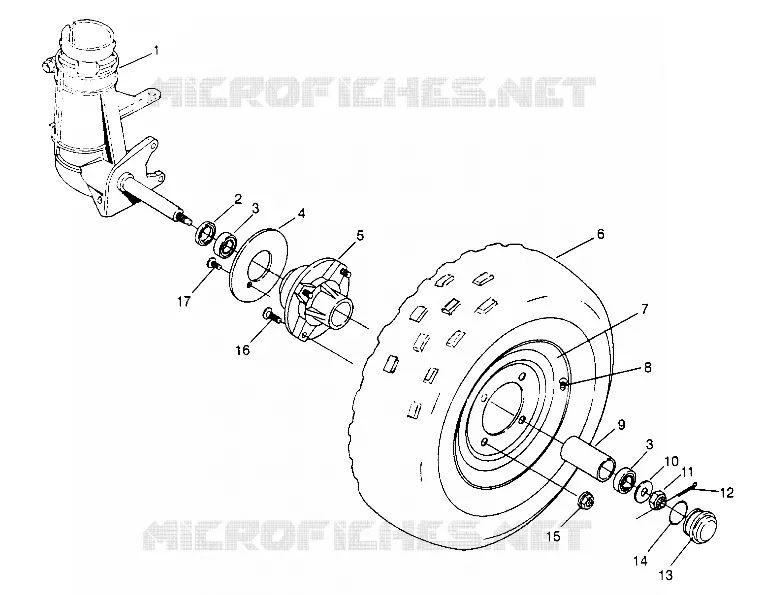

FRONT WHEEL ASSEMBLY 2X4 400L W957540 (4930093009B002)
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
SEAL FRONT HUB
3610020
Not Available
3
BEARING BALL
3514001
$34,64 Unit Price incl. VAT
4
DISC BRAKE
5211325
$141,74 Unit Price incl. VAT
5
HUB WHEEL 2WD. Substituted by 1520453
5130940
$238,34 Unit Price incl. VAT
6
TIRE FR(22X8-10)
5410480
Not Available
7
RIM FRT (SILVER)
1520175117
Not Available
8
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
9
SPACER HUB FRONT
5010256
Not Available
10
WASHER
7555721
$2,09 Unit Price incl. VAT
11
NUT(10)
7542712
$17,84 Unit Price incl. VAT
12
COTTER PIN(10)
7661407
$9,44 Unit Price incl. VAT
13
CAP HUB
5431018
$31,49 Unit Price incl. VAT
14
O RING
5410470
$4,19 Unit Price incl. VAT
15
NUT-HXFL-3/8-24 B ZTB P-A
7542459
$3,14 Unit Price incl. VAT
16
STUD(10)
7515523
$5,76 Unit Price incl. VAT
17
BOLT(10)
7515321
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
