1
Engine displacement
500
2
Year
2010
3
Trim
SPORTSMAN TOURING 500 HO INTL - A10DH50FX
4
Parts Catalog
BRAKES, FOOT PEDAL AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
BRAKES, VALVE SYSTEM
by
REAR BRAKE CALIPER

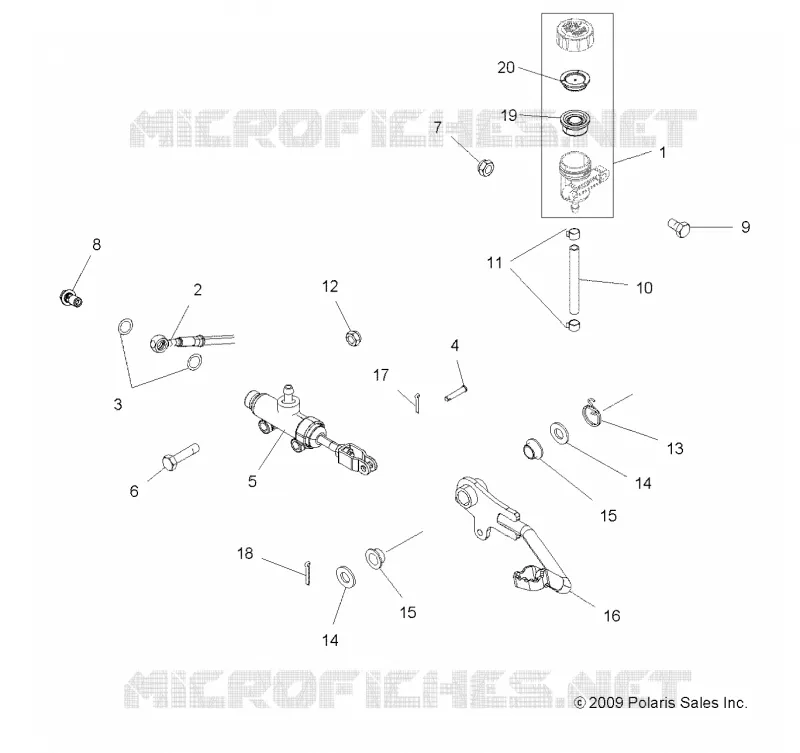

BRAKES, FOOT PEDAL AND MASTER CYLINDER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
16
17
18
19
20
1
ASM-RESERVOIR BRAKE TALL 2-EAR [INCL. 1-3]
1911224
$68,24 Unit Price incl. VAT
2
Line Brake Foot to J/B
1911345
$136,49 Unit Price incl. VAT
3
SEAL-STAT-0-3/8 70EP
5413212
$9,44 Unit Price incl. VAT
4
PIN-CLEVIS 1/4X5/8 - Z
7661830
$7,34 Unit Price incl. VAT
5
ASM. MASTER CYLINDER BRAKE FOOT
1911551
$204,74 Unit Price incl. VAT
6
BOLT(10) Substituted by 7515352
7515306
Not Available
7
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
8
BOLT-BANJO 10MMX1.00-6G
1910499
$10,49 Unit Price incl. VAT
9
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
10
HOSE-RESERVOIR BRAKE 635MM
1911267635
1911267-790
$23,09 Unit Price incl. VAT
11
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
12
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
13
Spring Torsion
7043276
Not Available
14
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
15
BUSHING PIVOT PEDAL
5433189
$7,34 Unit Price incl. VAT
16
Rod Brake Black
1911324067
$76,85 Unit Price incl. VAT
17
PIN-COTTER 5/64X3/4-Y
7661900
$6,29 Unit Price incl. VAT
18
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
19
DIAPHRAGM RESERVOIR BRAKE
5413262
$9,44 Unit Price incl. VAT
20
RING RESERVOIR BRAKE
5437041
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
