CLUTCH COVER FOR SPORTSMAN TOURING 500 EFI - A08DN50AF/AS/AW/AZ FROM 2008

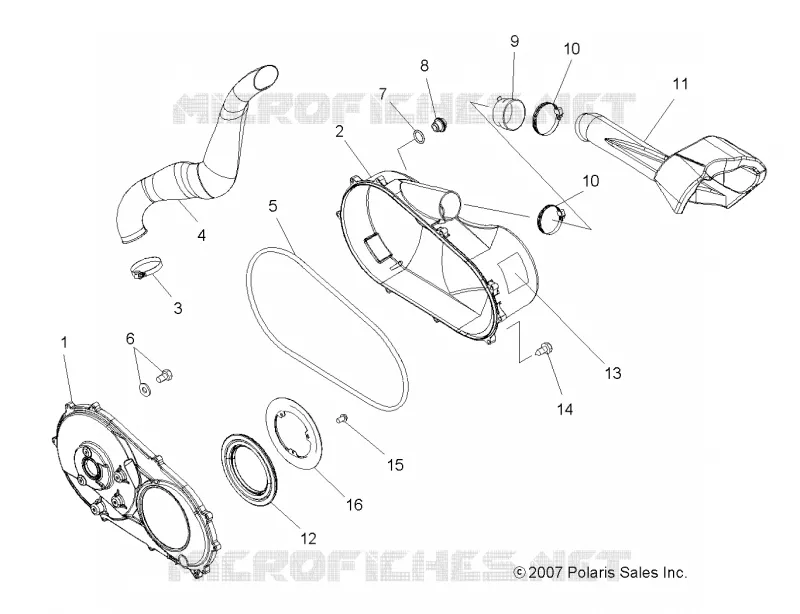

CLUTCH COVER

1

Asm. Cover Clutch Inner [Incl. 11 14]

2633158

Not Available

2

Asm. Clutch Cover Outer [Incl. 16 17]

2633262

$346,49 Unit Price incl. VAT

3

CLAMP-NARROW BAND 1.38/2.38

7080511

$9,44 Unit Price incl. VAT

4

Duct Clutch Air Inlet

5437384

Not Available

5

SEAL COVER CLUTCH OUTER [TO 9/15/2021]

5521738

$78,74 Unit Price incl. VAT

6

Asm. Screw and Washer [INCL. 15 &16]

7517599

$10,49 Unit Price incl. VAT

7

O RING-.364X.504X.07

5410542

$9,44 Unit Price incl. VAT

8

PLUG-DRAIN CLUTCH COVER

5434264

$10,49 Unit Price incl. VAT

9

Boot Duct Hi-Flow

5412636

$47,24 Unit Price incl. VAT

10

CLAMP-BAND NARROW 70-90MM

7081279

$5,76 Unit Price incl. VAT

11

Duct Clutch Outlet

5437043

Not Available

12

Seal Cover Clutch Inner [2x4][4x4]

5412725

$94,49 Unit Price incl. VAT

13

DECAL WARNING CLUTCH COVER

7172563

Not Available

14

SCR-#14X1-1/4 LG HI/LO/TAPER-M

7512094

$3,14 Unit Price incl. VAT

15

SCREW & WASHER(10)

3084205

$7,34 Unit Price incl. VAT

16

Bracket Clutch Seal

5242046

$68,24 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
