1
Engine displacement
500
2
Year
1999
3
Trim
intl-big-boss-500-6x6-a99ae50da
4
Parts Catalog
GEARCASE/BRAKE AND CHAIN COVER MOUNTING
5
Parts Diagram
Parts Catalog
FOOT PEDAL PARKING BRAKE
by
REAR WHEEL DRIVE

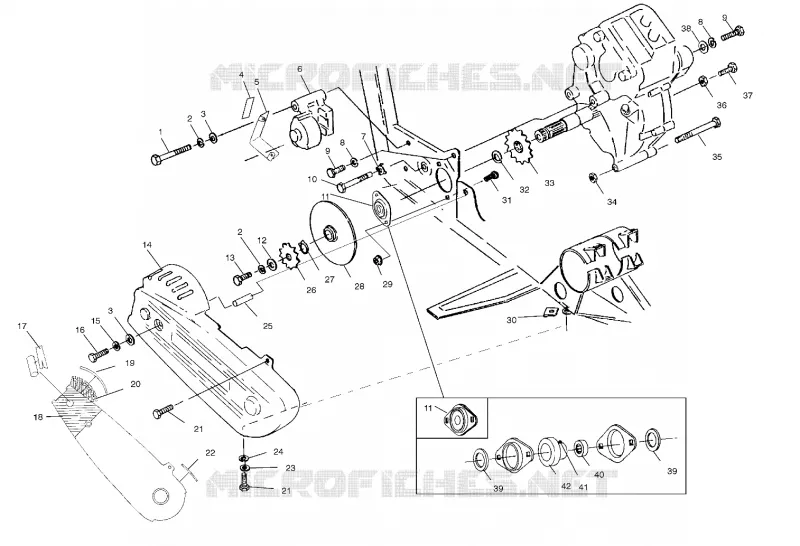

GEARCASE/BRAKE AND CHAIN COVER MOUNTING
1
BOLT(10)
7515345
$10,49 Unit Price incl. VAT
2
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
3
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
4
DECAL BRAKE SHIELD
7075339
Not Available
5
SHIELD R.CALIPER BLK.
5241018067
Not Available
6
CALIPER ASM BRAKE (Incl. 2 5 7 8)
1910125
Not Available
8
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
9
BOLT(10)
7515522
$7,34 Unit Price incl. VAT
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
SHAFT ASM O/P NDL BRG. Substituted by 2201115 (After Jan. 1 1997)
1590265
Not Available
12
WSHR-.344X.750X.062-Y
7555701
$7,34 Unit Price incl. VAT
13
BOLT(10)
7515321
Not Available
14
GUARD CTR.CHAIN NOR.
5432254
Not Available
15
WASHER(10)
7552606
$9,44 Unit Price incl. VAT
16
BOLT(10)
7515384
Not Available
17
DESC NOT_AVAILABLE
5811760
Not Available
18
DESC NOT_AVAILABLE
5811757
Not Available
19
DESC NOT_AVAILABLE
5811759
Not Available
20
DESC NOT_AVAILABLE
5811758
Not Available
21
BOLT(10)
7512269
Not Available
22
DESC NOT_AVAILABLE
5811054
Not Available
23
WASHER(10)
7552605
$9,44 Unit Price incl. VAT
24
WASHER [INTL]
7555843
7558302
$3,14 Unit Price incl. VAT
25
SPACER CHAIN GUARD
5333254
Not Available
26
SPKT 11T
3221058
$115,49 Unit Price incl. VAT
27
RING RETAINING(10)
7710433
$9,44 Unit Price incl. VAT
28
DISC ASM BRAKE
1910177
Not Available
29
NUT
7542449
$7,34 Unit Price incl. VAT
30
NUT SPEED(10)
7670060
$7,34 Unit Price incl. VAT
31
BOLT CARRIAGE(10)
7515484
Not Available
32
RING RETAINING BASIC EXTERNAL
7710434
$7,34 Unit Price incl. VAT
33
SPKT 12T (Opt.)
3221044
$83,99 Unit Price incl. VAT
34
Nut
7542403
Not Available
35
SCR-3/8-24X3 3/4 HX CP GR5-Y
7515472
$4,19 Unit Price incl. VAT
36
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
37
BOLT(10)
7515485
$5,24 Unit Price incl. VAT
38
WASHER
7555806
$1,56 Unit Price incl. VAT
39
SEAL BRAKE
3610062
$17,84 Unit Price incl. VAT
40
BEARING NEEDLE
3554202
Not Available
41
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
42
HSG BRNG O/P SHAFT
5131643
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
