1
Engine displacement
570
2
Year
2018
3
Trim
570 SPORTSMAN 6X6
4
Parts Catalog
BODY, CLUTCH COVER
5
Parts Diagram
Parts Catalog
by
DUMP BOX

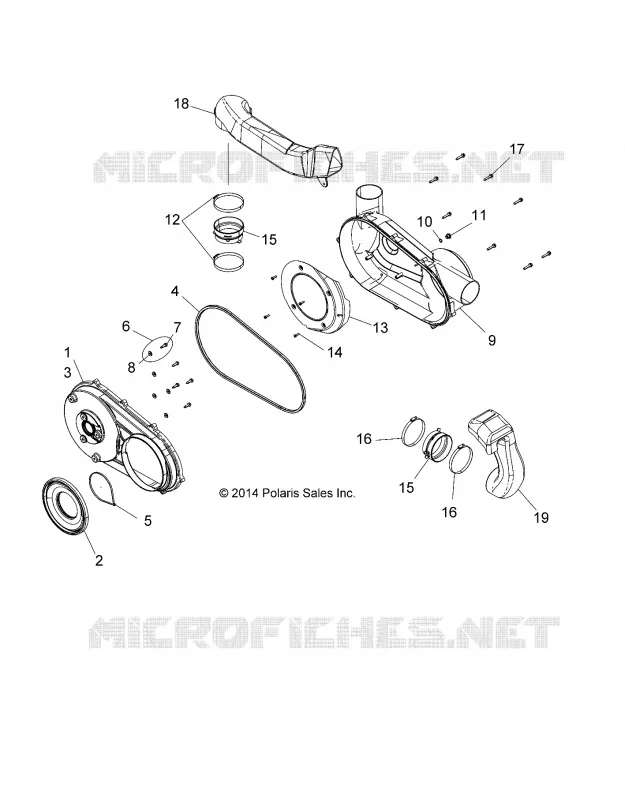

BODY, CLUTCH COVER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
12
12
17
18
18
19
1
ASM. CLUTCH COVER INNER [INCL. COVER 2 3]
2634896
$194,24 Unit Price incl. VAT
2
SEAL COVER CLUTCH INNER
5414727
$110,24 Unit Price incl. VAT
3
COVER-CLUTCH INNER SPMN BLK
5450209070
2634896
$194,24 Unit Price incl. VAT
4
SEAL COVER CLUTCH OUTER [TO 9/15/2021]
5521738
5526450
$78,74 Unit Price incl. VAT
5
STRAP-TIE SS 14#
7082260
$10,49 Unit Price incl. VAT
6
Asm. Screw and Washer [INCL. 15 &16]
7517599
$10,49 Unit Price incl. VAT
7
SCR-1/4-20X.88 HXWR TAPR GR5 Y
7517312
$2,09 Unit Price incl. VAT
8
WASHER-.28X.62-.14(RBR-BK)-Z
7555748
$9,44 Unit Price incl. VAT
9
ASM. COVER CLUTCH OUTER [INCL. 9 10 12 13]
2634897
$346,49 Unit Price incl. VAT
10
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
11
PLUG-DRAIN CLUTCH COVER
5434264
$10,49 Unit Price incl. VAT
12
CLAMP-WORM DRIVE 3.69 DIA
7081626
$14,69 Unit Price incl. VAT
13
COVER CLUTCH INTAKE BAFFLE
5450420
$173,24 Unit Price incl. VAT
14
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
$2,09 Unit Price incl. VAT
15
BOOT DUCT CLUTCH
5414768
$31,49 Unit Price incl. VAT
16
CLAMP-WORM DRIVE 3.69 DIA
7081626
$14,69 Unit Price incl. VAT
17
SCR-#14X1-1/4 HI/LO/TAPER-Y
7519849
$6,29 Unit Price incl. VAT
18
DUCT AIR INLET CLUTCH
5451354
$125,99 Unit Price incl. VAT
18
PAD-FOAM SHIM TRUNK
5413465
$12,59 Unit Price incl. VAT
19
DUCT CLUTCH OUTLET
5450546
$104,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
