1
Engine displacement
440
2
Year
1994
3
Trim
440 L/C - 0942760
4
Parts Catalog

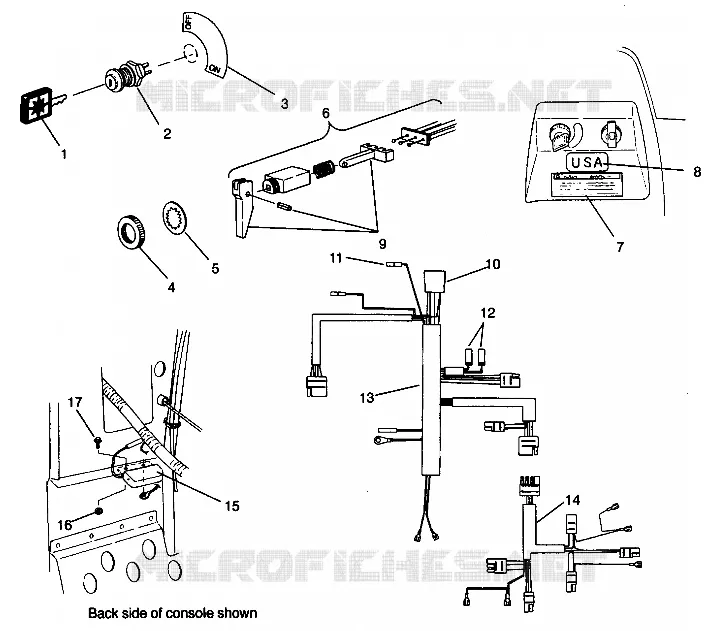

IGNITION WIRE HARNESS 440 0942760 AND 440 SKS 0942560 (4925072507008A)
5
Parts Diagram
Parts Catalog
HOOD
by
FRONT SUSPENSION AND SKI 440 0942760 AND 440 SKS 0942560 (4925072507009A)
IGNITION WIRE HARNESS 440 0942760 AND 440 SKS 0942560 (4925072507008A)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
CAP W/KEY NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN A B C D OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND O
5410611
Not Available
2
KIT IGN. SWITCH (Incl. 6 7 9)
2200357
Not Available
3
DECAL IGNITION(10)
7074202
Not Available
4
Nut Choke Slide
7080229
$36,74 Unit Price incl. VAT
5
Washer Inter Lock
7571610
$7,34 Unit Price incl. VAT
6
CABLE CHOKE
7080290
$194,24 Unit Price incl. VAT
7
DECAL#NO PASS#GR#WARN.
7073406
Not Available
8
LABEL #U.S.A.#
7073024
Not Available
9
KIT CHOKE CONTROL INCL. ANCHOR FLIPPER PIN
2200188
$52,49 Unit Price incl. VAT
10
HOUSING W/RECEPTACLE
4020057
$5,66 Unit Price incl. VAT
11
HOUSING
4020133
Not Available
12
HOUSING
4020153
$2,19 Unit Price incl. VAT
13
HARNESS MAIN WIRE
2460394
Not Available
14
HARNESS HANDLEBAR
2460472
Not Available
15
REGULATOR VOLTAGE
4060092
2203873
$188,99 Unit Price incl. VAT
16
SCREW(10)
7512052
Not Available
17
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
