1
Engine displacement
570
2
Year
2016
3
Trim
SPORTSMAN TOURING 570 EFI EPS MD
4
Parts Catalog
DRIVE TRAIN, SECONDARY CLUTCH
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, REAR DRIVE SHAFT
by
ELECTRICAL, SWITCHES, SENSORS AND ECM

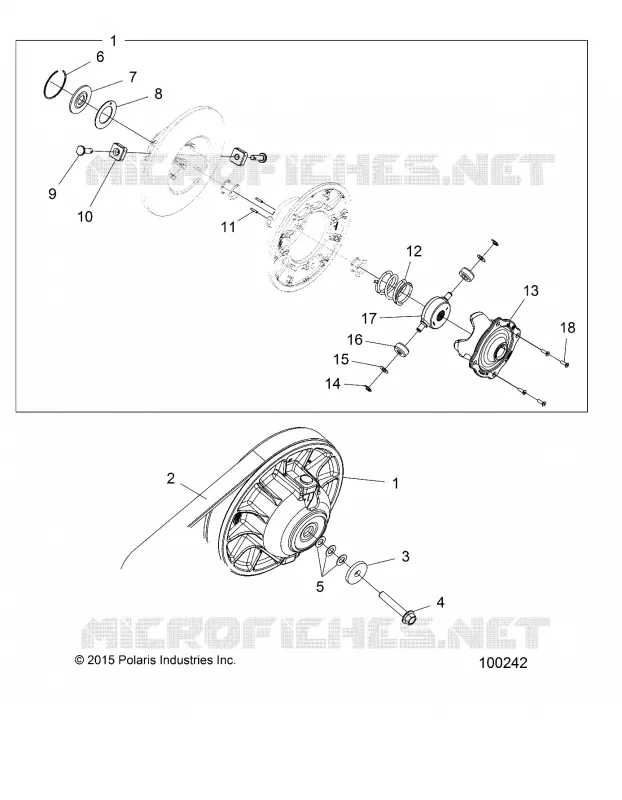

DRIVE TRAIN, SECONDARY CLUTCH
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
ASM-CLUTCH DRIVEN BOSS TIED
1323296
$871,49 Unit Price incl. VAT
2
BELT DRIVE EBS
3211113
$128,09 Unit Price incl. VAT
3
WASHER-FLAT 400X1.75X.188THK Z
7556936
$14,69 Unit Price incl. VAT
4
SCR-HXFL-M10X1.25X60 ZOD
7519210
$3,14 Unit Price incl. VAT
5
WASHER-0.75X.400X.03 FL-Y
7556580
$2,09 Unit Price incl. VAT
6
RING RETAINING INTERNAL
3235859
$25,19 Unit Price incl. VAT
7
WASHER OFFSET THRUST
3235860
$20,99 Unit Price incl. VAT
8
SHIM 2.040 OD X 1.63 ID
3235861
$52,49 Unit Price incl. VAT
9
PIN ROLLER
3234201
$31,49 Unit Price incl. VAT
10
PUCK SQUARE TIED 1.135 X 0.3775 X 0.55
3514926
$26,24 Unit Price incl. VAT
11
SPRING CLUTCHPIN SPRING SLOTTED
3234202
$7,34 Unit Price incl. VAT
12
SPRING
7044509
3235088
$204,74 Unit Price incl. VAT
13
CAM
3235784
$467,24 Unit Price incl. VAT
14
RET.E-RING-E T.375-TEAM#130059
7710523
$5,24 Unit Price incl. VAT
15
WASHER THRUST
7556226
$10,49 Unit Price incl. VAT
16
ROLLER-BTD 9.58X28.83X13.97 CE
3514929
$52,49 Unit Price incl. VAT
17
SPIDER
3235862
$167,99 Unit Price incl. VAT
18
SCREW HELIX PATCH
3234754
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
