1
Engine displacement
570
2
Year
2018
3
Trim
570 SPORTSMAN 6X6
4
Parts Catalog
FRONT BRAKE CALIPER
5
Parts Diagram
Parts Catalog
FRONT BRAKE BRAKE LEVER AND MASTER CYLINDER
by
BODY, DUMP BOX LEVER AND SHOCK MOUNTING

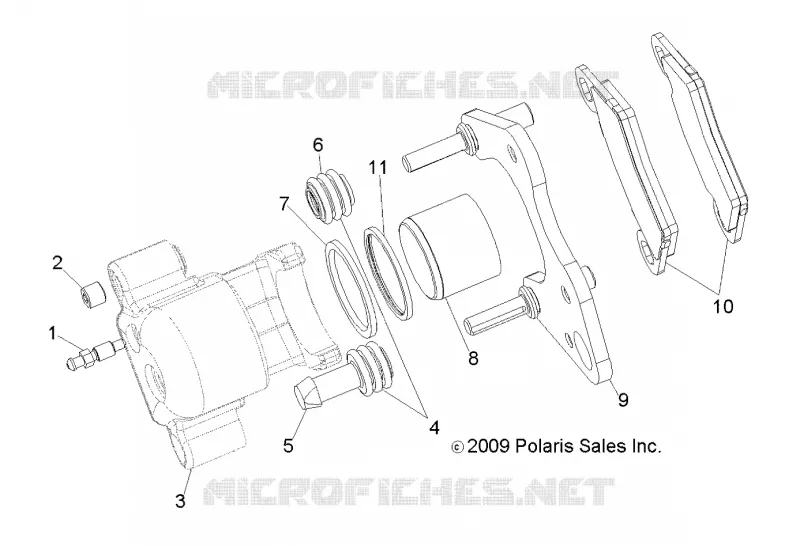

FRONT BRAKE CALIPER
-
-
1
2
3
3
4
5
6
7
8
9
10
11
-
Asm. Caliper Brake Front LH [INCL. 1-10]
1911616
$509,24 Unit Price incl. VAT
-
Asm. Caliper Brake Front RH [INCL. 1-10]
1911617
$509,24 Unit Price incl. VAT
1
SCR-M7X1.0 BLEEDER OLIVE D
7081343
$10,49 Unit Price incl. VAT
2
SCR-M10X1.0X8 SOC SET-OD
7518863
$17,84 Unit Price incl. VAT
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
KIT-BOOT FRONT BRAKE [INCL. 5 6]
1930642
$20,99 Unit Price incl. VAT
5
BOOT-PIN BUSHING
5412505
$6,29 Unit Price incl. VAT
6
BOOT-PIN SEAL
5412506
$6,29 Unit Price incl. VAT
7
SEAL-CALIPER INNER 1.50#
5412010
$13,64 Unit Price incl. VAT
8
PISTON-CALIPER 1.50 (MACH)
5132829
$73,49 Unit Price incl. VAT
9
ASM-CALIPER MNT FRONT 1.500
1910513
$99,74 Unit Price incl. VAT
10
KIT-BRAKE PAD ASM 1.5 [INCL. 4 PADS]
2202413
$98,16 Unit Price incl. VAT
11
SEAL-CALIPER OUTER 1.50#
5412011
$13,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
