1
Engine displacement
0
2
Year
1988
3
Trim
SWE LTR - S881549
4
Parts Catalog

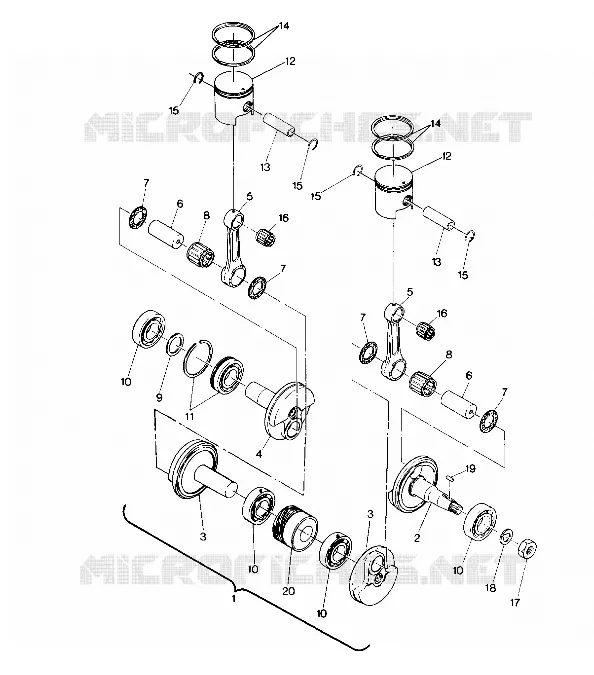

PISTON AND CRANKSHAFT LTR (4914141414036A)
5
Parts Diagram
Parts Catalog
CYLINDER LTR (4914141414035A)
by
OIL PUMP STARTRAK (4914141414041A)
PISTON AND CRANKSHAFT LTR (4914141414036A)
1
CRANKSHAFT (Incl. 2-11 20)
3083887
Not Available
2
CRANKSHAFT #1
3083280
Not Available
3
CRANKSHAFT #2 (Incl. 6)
3083890
Not Available
4
CRANKSHAFT #3
3083278
Not Available
5
ROD-CONNECTING
3083252
$236,24 Unit Price incl. VAT
6
PIN CRANK
3083233
Not Available
7
SPACER CRANK PIN
3083277
$27,29 Unit Price incl. VAT
8
BEARING LGE.END Substituted by 3085720
3083276
$2 351,99 Unit Price incl. VAT
9
SPACER CRANKSHAFT
3080447
$3,24 Unit Price incl. VAT
10
BEARING BALL Substituted by 3084601
3083888
$72,96 Unit Price incl. VAT
11
BEARING BALL
3083889
Not Available
12
PISTON
3083880
Not Available
12
PISTON .020 O/S (.020) (Incl. 15)
3083895
Not Available
13
PIN PISTON
3083858
$40,94 Unit Price incl. VAT
14
RING PISTON
3082822
Not Available
15
CLIP PISTON PIN (10)
3083839
$7,34 Unit Price incl. VAT
16
BEARING END SMALL
3083216
3515064
$25,71 Unit Price incl. VAT
17
NUT
3083093
7547895
$7,34 Unit Price incl. VAT
18
WASHER SPRING
3083094
7557228
$6,29 Unit Price incl. VAT
19
KEY
3081447
Not Available
20
GEAR DRIVE OIL PUMP
3083782
$150,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
