1
Engine displacement
900
2
Year
2005
3
Trim
900 RMK
4
Parts Catalog
ENGINE MOUNTING LH
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING RH AND FRONT
by
EXHAUST VALVE
ENGINE MOUNTING LH
1
1
2
3
4
5
6
7
7
8
8
9
10
11
12
13
14
15
1
NUT NYLOK FLANGED 1/4 [INTL]
7542153
$3,14 Unit Price incl. VAT
2
Asm. Fuel Filter Retainer
1202988
$9,44 Unit Price incl. VAT
3
Support Upper LH
1014837
Not Available
4
SCREW(10)
7515111
$13,64 Unit Price incl. VAT
5
Support Engine Rear LH
5134874
$65,40 Unit Price incl. VAT
6
SCREW(10)
7512208
$7,34 Unit Price incl. VAT
7
RIVET-3/16-.214-.420
7661130
$2,09 Unit Price incl. VAT
8
NUT(10) (Euro SKS)
7542151
$7,34 Unit Price incl. VAT
9
Screw
7518422
Not Available
10
WASHER
7555806
$1,56 Unit Price incl. VAT
11
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
12
STOP-TORQUE COURSE 3/8-16 1.50
3021354
$47,24 Unit Price incl. VAT
13
SCREW
7512253
$7,34 Unit Price incl. VAT
14
Screw
7518410
Not Available
15
Mount Engine Rear
3021564
$66,66 Unit Price incl. VAT

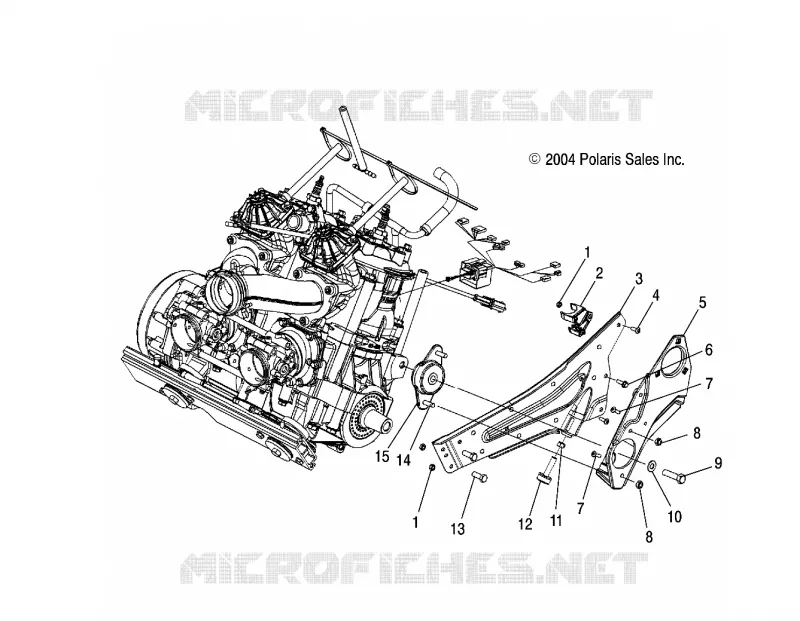

Find the detailed ENGINE MOUNTING LH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
